USB 4.0 Verification IP provides a smart way to verify the USB 4.0 component of a SOC or a ASIC. The SmartDV's USB 4.0 Verification IP is fully compliant with standard USB Specification 4.0. The USB 4.0 VIP can be readily customized and optimized for a wide range of specific system applications.
USB 4.0 Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
USB 4.0 Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Compliant with USB4.0 Specification
- Supports USB4.0 Gen2 and Gen3 Operation
- Supports constrained randomization of protocol attributes
- Supports all types of error injection and detection
- Supports error injection in all the layers of USB 4.0
- Supports Dual lane
- Supports Lane margining and Lane de-skew buffer
- Supports Side band channels

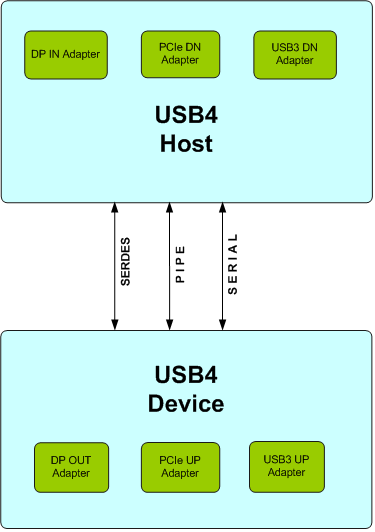

- Supports SERIAL, PIPE and SERDES Interface
- Configurable PIPE Interface width 8, 16 or 32 bits
- Configurable SERDES Interface width 32, 40, 64 and 80 bits
- Supports Enumeration process to enumerate hub/device
- Supports 64/66B Encoding and Decoding for Gen2
- Supports 128/132B Encoding and Decoding for Gen3
- Supports Scrambler and Descrambler
- Supports RS-Forward Error Correction (FEC)
- Supports Clock compensation
- Supports Spread spectrum clocking
- Supports jitter
- Supports Side band register space
- Supports Configuration register space
- Supports Lane adapter, Protocol adapter and Control adapter operations
- Supports Lane initialization process
- Supports Low power state
- Supports Lane bonding mechanism
- Supports Error detection and Recovery mechanism
- Supports USB4 Link Equalization TxFFE handshake.
- Supports all the Side Band Channel transactions
- Supports Sleep and Wake mechanism with respect to the tunneled protocols
- Supports Hot plug detection and Disconnect detection
- Supports SKIP Insertion and Removal
- Supports Time Sync Notification Ordered Set (TSNOS)
- Supports following Protocol tunneling,
- USB3 tunneling
- Display port tunneling
- PCIE tunneling
- Supports all the Transport layer packets
- Supports HEC, ECC and CRC
- Supports Path Setup & Path Tear-Down mechanism
- Supports Flow control mechanism
- Supports all the Control packets
- Supports all the Notification events
- Supports Time Synchronization
- Supports Register Locking mechanism
- Supports Inter-Domain communication between host interface adapters
- Supports Thunderbolt related backward compatible operation
- Supports Qos scheduler
- Supports Re-timer connectivity models
- Supports Host interface adapter layer functionality
- Supports Connection manager behaviour
- Benefits
-
- Rich set of configuration parameters to control the functionality
- Faster testbench development and more complete verification of USB 4.0 designs.
- Easy to use command interface simplifies testbench control and configuration of host and device.
- Simplifies results analysis.
- Runs in every major simulation environment.
- USB 4.0 Verification Env
-
SmartDV's USB 4.0 Verification env contains following.
- Complete regression suite containing all the USB 4.0 testcases.
- Examples showing how to connect various components, and usage of BFM and Monitor.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
