SPDIF Verification IP provides an smart way to verify the SPDIF component of a SOC or a ASIC. The SmartDV's SPDIF Verification IP is fully compliant with IEC 60958 Specification and provides the following features.
SPDIF (IEC60958) Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
SPDIF (IEC60958) Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Full SPDIF functionality as per specs IEC 60958 and IEC 61937.
- Supports SMPTE 337M standards for non Linear PCM Audio
- Supports AES/EBU, AES3 standards for Linear PCM Audio
- Supports following sampling/Driving rates,
- 32 kHz
- 44.1 kHz
- 48 kHz
- 22.05 kHz
- 24 kHz
- 768 kHz
- 384 kHz
- 352.8 kHz
- 1536 kHz
- 88.2 kHz
- 96 kHz
- 176.4 kHz
- 192 kHz
- Supports 32 audio channels.
- Supports configurable Baud rate control.
- Supports the Biphase-mark code.
- Supports start bit correction.
- Supports clock recovery Circuit.
- Supports injection of various errors
- Preamble error
- Channel status error
- Parity Error
- Various field errors
- Notifies the testbench of significant events such as transactions, warnings, and protocol violations.
- Supports constraints Randomization.
- Callbacks in transmitter, receiver and monitor for user processing of data.
- Functional coverage for complete SPDIF IEC 60958 and IEC 61937 features.
- SPDIF Verification IP comes with complete testsuite to verify each and every feature of SPDIF specification.
- Status counters for various events on bus.
- On-the-fly protocol and data checking
- Benefits
-
- Faster testbench development and more complete verification of SPDIF designs.
- Easy to use command interface simplifies testbench control and configuration of TX and RX.
- Simplifies results analysis.
- Runs in every major simulation environment.

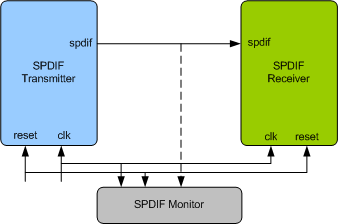

- SPDIF Verification Env
-
SmartDV's SPDIF Verification env contains following.
- Complete regression suite containing all the SPDIF testcases.
- Examples showing how to connect various components, and usage of Tx,Rx and Monitor.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation contains User's Guide and Release notes.
- Smart VIPDebug
-

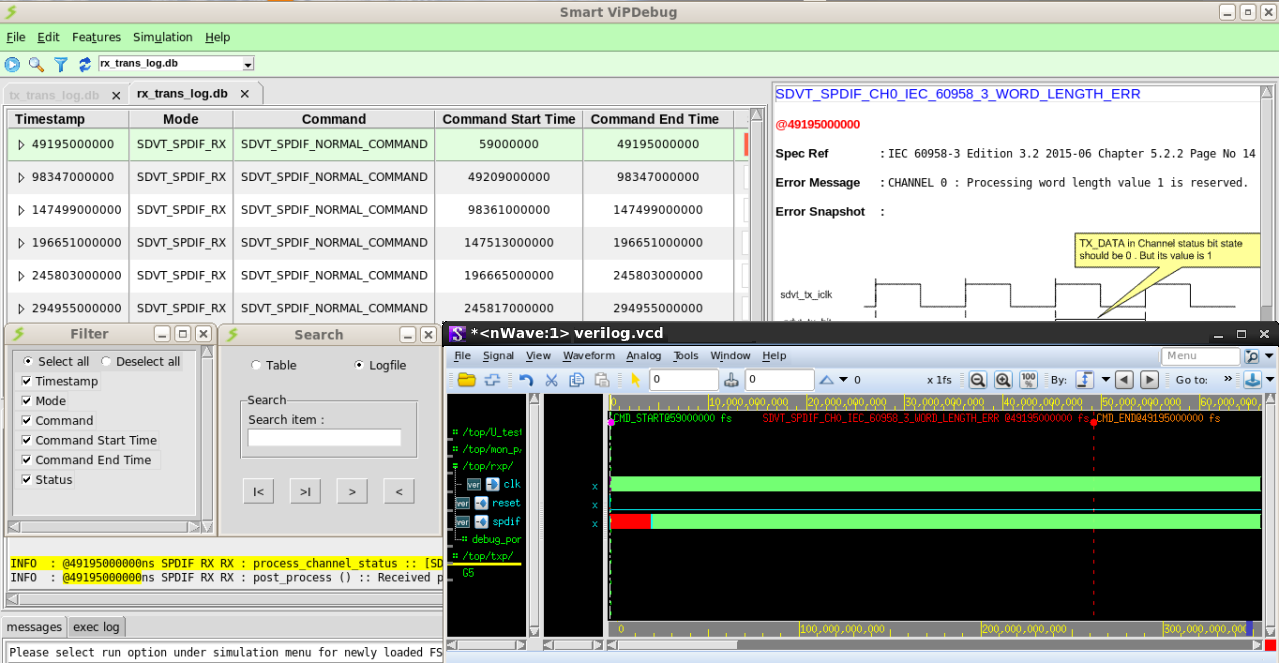

Smart VIPDebug provides easy way to debug the SPDIF (IEC60958) Verification IP Protocol. This links waveform, log file with specs and makes debugging easier
Smart VIPDebug supports both VCD and FSDB files for debugging.
