SDIO UHS II Verification IP

SDIO UHS II Verification IP

SDIO UHS II Verification IP is an advanced solution in the market for the verification of SDIO UHS-II implementations.It can generate all command types. The SDIO UHS-II monitor acts as powerful protocol-checker, fully compliant with UHS-II Adddendum version 2.00.

SDIO UHS-II VIP includes an extensive test suite covering most of the possible scenarios and SDIO UHS-II conformance norms. SDIO UHS-II VIP can perform all protocol tests as testbench and moreover it allows an easy generation of a very high number of patterns and a set of specified patterns to stress the DUT.

SDIO UHS II Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

SDIO UHS II Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Supports SD specification UHS-II Adddendum version 2.00 compliant.
  • Supports Part E1 SDIO specification version 4.10.
  • Supports SD specification physical layer version 4.0/4.20/5.0/5.10/6.0/6.10/7.0/7.10/8.0(Draft).
  • Supports bi-directional receiver/transmitter (2ch) supporting both Full Duplex and Half Duplex modes.
  • Supports PHY-LINK interface.
  • Supports lock-unlock and erase operation card features.
  • Supports point-to-point and Ring connection.
  • Supports RCLK frequency: 26~56MHz.
  • Supports higher bus speed of UHS II(UHS III).
  • Supports high speed interface up to 312MB/s for Version 1.02, and up to 624MB/s for Version 2.00.
  • Supports Full Duplex mode (FD mode): data rate from 39MB/sec to 156MB/sec in Version 1.02. The maximum speed of this mode is enhanced to 624MB/s in Version 2.00.
  • Supports Half Duplex with 2 Lanes mode (2L-HD mode): data rate from 78MB/sec to 312MB/sec in Range A and Range B.
  • Supports following additional lanes features
    • Full Duplex with 2 Downstream and 1 Upstream Lanes mode
    • Full Duplex with 1 Downstream and 2 Upstream Lanes mode
    • Full Duplex with 2 Downstream and 2 Upstream Lanes mode
  • Single byte, single block, multiple block (finite and infinite) transfers and MMC stream transfer operations.
  • Supports Bus-accurate timing.
  • Supports fast mode and low power mode.
  • Supports video class specification.
  • Supports flow control operations.
  • Supports Function extension commands.
  • Supports test modes.
  • Supports hibernate mode.
  • Supports enumeration.
  • Supports power saving modes.
  • Supports 8b10b encoding/decoding.
  • Supports clock phase adjustment.
  • Supports serializer and de- serializer(SERDES).
  • Supports data transaction for SD-TRAN and CM-TRAN.
  • Supports data transaction transfer length is fixed and infinite for SD-TRAN and CM-TRAN.
  • Supports card ownership protection.
  • Supports discard and Full user area logical erase.
  • Supports cache operation.
  • Supports command queuing.
  • Supports Card maintenance (background operations).
  • Supports Low voltage 1.8V cards.
  • Detects and reports the following errors.
    • Out of range error
    • Address misalign error
    • CRC error
    • Switch error
    • Illegal command error
    • Block length error
    • Lock-unlock failed error
    • Erase sequence error
    • Stuff bit error
    • Invalid voltage error
    • Reserved bit error
    • WP violation error
    • CSD/CID over write error
    • Disparity error insertion
    • Invalid K character error
    • Missing K character error
    • Link layer error injection
    • Initialization error injection
    • Illegal header error
    • Device specific error
    • Retry expiry error
    • Frame error
    • Scrambler error
  • Protocol Checker fully compliant with SDIO specification 4.10, SD specification physical layer specification 4.0/4.20/5.0/5.10/6.0/6.10/7.0/7.10/8.0(Draft) and UHS-II Addendum version 2.00 compliant.
  • SDIO UHS Verification IP comes with complete testsuite to test every feature of SDIO UHS specification.
  • Monitors, detects and notifies the test bench of significant events such as transactions, warnings, timing and protocol violations.
  • Status counters for various events on bus.
  • Functional coverage for complete SDIO UHS-II features.
  • Monitors, detects and notifies the testbench of all protocol and timing violations.
Benefits
  • Faster testbench development and more complete verification of SDIO UHS-II designs.
  • Easy to use command interface simplifies testbench control and configuration of slave and host.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

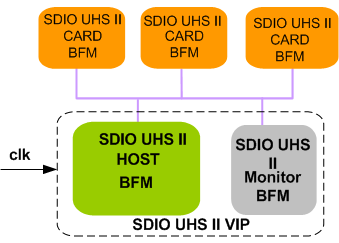

SDIO UHS-II Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's SDIO UHS-II Verification env contains following.

  • Complete regression suite containing all the SDIO UHS-II testcases.
  • Examples showing how to connect various components, and usage of Host, Slave and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation contains User's Guide and Release notes.
