SATA Verification IP

SATA Verification IP

SATA Verification IP provides an smart way to verify the SATA bi-directional bus. The SmartDV's SATA Verification IP is fully compliant with revision 2.5/2.6/3.0/3.1/3.2/3.3/3.4/3.5 of the SATA Specification and provides the following features.

SATA Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

SATA Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Supports SATA specs 2.5/2.6/3.0/3.1/3.2/3.3/3.4/3.5.
  • Supports 1.5, 3 and 6 Gbps speeds.
  • Supports Port Multiplier Discovery and Enumeration.
  • Supports following interfaces
    • 1 bit
    • 8 bit
    • 10 bit
    • 20 bit
    • 32 bit
    • 40 bit
    • 64 bit
  • Disparity checking.
  • Kcode & Dcode validity and alignment.
  • 8b/10b Encode and Decode functions.
  • Controls to inject bit errors.
  • OOB sequence generation and checking.
  • Digital SERDES model included.
  • Callbacks for use in directed test writing.
  • Selectable as Host or Device BFM.
  • Complete Link Layer state machine.
  • Selectable Primitive CONT and fill substitution processing.
  • Selectable data scrambling option.
  • Configurable Receive and Transmit fifo latencies.
  • 8b/10b encoding and decoding, Error injection.
  • Configurable OOB signals and speed of operation.
  • Configurable phy layer timers.
  • User defined primitive transmission.
  • Single or multi-bit error injection.
  • User defined primitives & frame transmission.
  • Supports link layer power modes.
  • SYNC injection during FIS transfer.
  • Randomized/directed CRC error injection and checking.
  • Ability to enable/disable scrambling on the fly.
  • Programmable enable/disable & duration of DMAT, CONT and HOLD primitives.
  • Callback functions for state transitions, primitive and FIS reception/transmission
  • OOB transmission/reception and speed change.
  • Supports LBA with HDD size configuration.
  • APIs providing backdoor access to HDD.
  • Programmable auto-activate support using configuration.
  • Supports all standard ATA command sets including NCQ.
  • Configurable FIS latencies, FIFO depths and FIS size.
  • Supports PIPE interface.
  • Supports 8,16,32,64 bit SERDES interface.
  • Supports Asynchronous notification.
  • Supports Asynchronous Signal Recovery.
  • Supports Speed Switching/Negotiation.
  • Set Features support.
  • Device Configuration Overlay.
  • Software Settings Preservation and Hardware Feature Control support.
  • Supports Staggered Spin up.
  • Supports the Non 512 Byte Sector Size.
  • Support for Enclosure Management/Services is available.
  • Supports HDD activity activation.
  • Ability to Automatic Partial to Slumber Transitions.
  • Supports DHU Specific Operation.
  • Rebuild Assist is supported.
  • Supports Intermixing of Non-native queued commands with Native Queued commands.
  • Enabled Hybrid Information Feature.
  • Device Signature return Feature.
  • Supports SATA Logs.
  • Optional DC-IDLE pin
  • Supports FPDMA Zone management commands.
  • Supports Queued version of ACS-4 Zero EXT command.
  • Supports Receive FPDMA Queued to support ZAC.
  • Supports Data Set Management aligned with ACS-4 and Data Set Management XL command.
  • Supports ZAC Management Logs for NCQ Non data and Send/Receive FPDMA commands.
  • Supports Out of band management control structures
  • Callbacks in Host, Device and monitor for user processing of data.
  • Notifies the testbench of significant events such as transactions, warnings, timing and protocol violations.
  • SATA Verification IP comes with complete testsuite to test every feature of SATA specification.
  • Functional coverage for complete SATA features.
Benefits
  • Faster testbench development and more complete verification of SATA designs.
  • Easy to use command interface simplifies testbench control and configuration of Host and Device.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

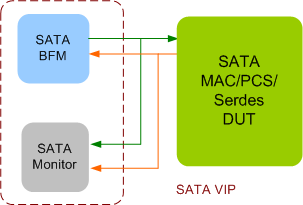

SATA Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's SATA Verification env contains following.

  • Complete regression suite containing all the SATA testcases.
  • Examples showing how to connect various components, and usage of BFM and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
