SENT (SAE J2716) Verification IP

SENT (SAE J2716) Verification IP

Single Edge Nibble Transmission (SENT) is a single-wire, serial unidirectional communication protocol. It is intended for use in applications where high resolution sensor data needs to be communicated from a sensor to an Engine Control Unit (EUC). It is intended as a replacement or the lower resolution methods of 10 bit A/D's and as a simpler low cost alternative to CAN or LIN in automotive industry. SENT (SAE J2716) Verification IP are reusable components that provide ready made verification environment. Compatible with Single Edge Nibble Transmission (SENT) specifications and supports all the frame types. SENT (SAE J2716) includes an extensive test suite covering most of the possible scenarios. It can perform all protocal tests and moreover it allows an easy generation of very high number of patterns and a set of specified patterns to stress the DUT.

SENT (SAE J2716) Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

SENT (SAE J2716) Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Compatible with Single Edge Nibble Transmission (SENT) specification SAE J2716 April 2016
  • Supports SENT/SPC protocol as defined in the MPC5510 Microcontroller family (AN4219)
  • Supports both SLOW and FAST channel transmissions.
  • Supports following types of frame formats in SLOW channel transmission.
    • Short Serial Message format
    • Enhanced Serial Message format
  • Enhanced serial message formats Supports different configurations
    • 12-bit data and 8-bit message ID
    • 16-bit data and 4-bit message ID
  • These SAE J2716 nodes can be configured as Sensor, Active Device or Passive Device nodes.
  • The DUT can either be a SAE J2716 sensor or device.
  • Supports following types of frames formats in FAST channel transmission.
    • H.1: Two 12-bit fast channels (6 data nibbles).
    • H.2: One 12-bit fast channel (3 data nibbles).
    • H.3: High-speed with one 12-bit fast channel (4 data nibbles, where only values 0-7 are used).
    • H.4: Secure sensor with 12-bit fast channel 1 and secure sensor information on fast channel 2 (6 data nibbles).
    • H.5: Single sensor with 12-bit fast channel 1 and zero value on fast channel 2 (6 data nibbles).
    • H.6: Two fast channels with 14-bit fast channel 1 and 10-bit fast channel 2 (6 data nibbles).
    • H.7: Two fast channels with 16-bit fast channel 1 and 8-bit fast channel 2 (6 data nibbles).
  • Supports programmable clock frequency of operation.
  • Supports all types of error insertion and detection
    • Checksum error
    • Message ID error
    • Oversize error
    • Sync error
  • Supports pause pulse properties
    • Minimum length 12 ticks
    • Maximum length 768 ticks
  • Built-in checkers ensures that SENT (SAE J2716) Protocol has been followed correctly.
  • Allows creation of both random and directed testcases.
  • Functional coverage for complete SENT (SAE J2716) features.
  • Supports callbacks in monitor, device and sensor BFMs for user processing of data.
  • Monitors, detects and notifies the test bench of significant events such as transactions, warnings, timing and protocol violations.
  • SENT (SAE J2716) Verification IP comes with complete testsuite to test every feature of SENT (SAE J2716) specification.
Benefits
  • Faster testbench development and more complete verification of SENT (SAE J2716) Verification IP designs.
  • Easy to use command interface simplifies testbench control and configuration of device and sensor.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

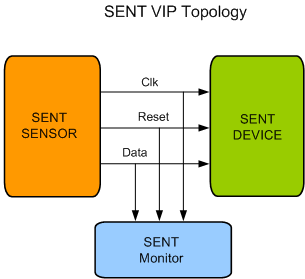

SENT (SAE J2716) Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's SENT (SAE J2716) Verification IP Verification env contains following.

  • Complete regression suite containing all the SENT (SAE J2716) Verification IP testcases.
  • Examples showing how to connect various components, and usage of Sensor, Device and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
