RoE Verification IP is compliant with IEEE 1914.3-2018 for Radio over Ethernet Encapsulations and Mappings and IEEE 802.3 Specification. It can work with SystemVerilog,Vera, SystemC, E and Verilog HDL environment.
RoE Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
RoE Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Supports IEEE 1914.3-2018 for Radio over Ethernet Encapsulations and Mappings and IEEE 802.3 Specification
- Supports Encapsulation and de-encapsulation functions and locations
- Supports Encapsulation transport format
- Supports RoE mappers/RoE de-mappers upto 256
- Supports the mapping of each I/Q Data sample
- Supports Control and Management data transfer.
- Supports the following RoE sub types
- RoE control subtype
- RoE structure-agnostic data subtype
- RoE structure-aware CPRI data subtype
- RoE Slow C&M CPRI subtype
- Native RoE time domain data subtype
- Native RoE frequency domain data subtype
- RoE native PRACH data subtype
- Supports bus accurate timing and timing checks.
- Supports Ethernet 10G/25G/40G/50G/100G/200G and 400G Ethernet Speeds
- Supports Glitch insertion and detection
- Supports all types of TX and RX errors insertion/detection at each layer.
- Comes with Tx BFM, Rx BFM, and Monitor
- Supports Pause frame generation and detection
- Callbacks in master and slave for various events
- Status counters for various events in bus
- Supports insertion of scrambler errors.
- Monitors, detects and notifies the test bench of significant events such as transactions, warnings, timing and protocol violations.
- Supports constraints Randomization.
- RoE Verification IP comes with complete test suite to test every feature of RoE specification.
- Functional coverage for complete RoE features.
- Benefits
-
- Faster testbench development and more complete verification of RoE designs
- Easy to use command interface simplifies testbench control and configuration of TX and RX
- Simplifies results analysis
- Runs in every major simulation environment

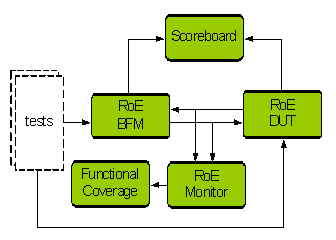

- RoE Verification Env
-
SmartDV's RoE Verification env contains following.
- Complete regression suite (UNH) containing all the RoE testcases.
- Examples showing how to connect various components, and usage of TXRX BFM and Monitor.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
