NVMe Verification IP provides an smart way to verify the NVMe bi-directional bus. The SmartDV's NVMe Verification IP is fully compliant with NVM-Express-1_4-2019.06.10-Ratified specification and provides the following features.
NVMe Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
NVMe Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Supports NVM-Express-1_4-2019.06.10-Ratified specification.
- Support all Admin commands
- Support all IO commands
- Support for all Transaction types/Opcodes.
- UVM and Verilog APIs supplied, as well as C DPI exports
- Automated Error Injections at all layers
- Checkers verify protocol timing checks and functional accuracy at each layer
- Notifies the testbench of significant events such as transactions, warnings, timing and protocol violations.
- Supports Interrupt Mechanism
- Supports Data Integrity as End to End Data Protection
- Supports Submission and completion queue management
- Supports Controller Memory Buffer
- Supports memory description as PRP/SGL description list
- Supports Boot partitions operations
- Supports additional data insertion by Metadata
- Supports doorbell buffer configurations
- Supports error reporting and recovery mechanism
- Supports reservation feature
- Supports directive feature
- Supports Namespace subsystem
- NVMe over PCIe
- - > Supports complaint and optimized TLP packets.
- - > Supports PIPE, PCS/PMA, and serdes interface
- - > Full link speed and width negotiation up to 32 Lanes
- - > Queuing for VCs with configurable depth
- - > Configurable TC to VC queue mapping
- - > User interface for direct TLP queuing and receipt
- - > Checks all TLPs for correct formation of headers, prefixes, and ECRC
- - > Full DL state machines
- - > Checks all framing, LCRC, and lane rules
- - > Check all DLLP fields and formatting
- - > Interface to send / receive user defined DLLPs
- - > Full LTSSM state machine
- - > SERDES model with digital clock recovery
- - > Supports Up configure, polarity inversion, and lane-to-lane skew
- - > Configurable Spread Spectrum Clocking (SSC)
- - > Configurable timers and timeouts
- - > Supports for Conventional PCI Advanced Features
- - > Supports PAM4 encoding scheme
- - > Supports Gray coding and Tx Precoding
- - > Supports Flit mode and non flit mode
- - > Supports Forward Error Correction mechanism
- - > Supports L0p state
- - > Supports Shared Credit Pool
- - > Supports Link management DLLP
- - > Compliant with PIPE 5.2.1 Specification
- NVMe Verification IP comes with complete test suite to test every feature of NVMe specification.
- Supports UNH-IOL testing service
- Functional coverage for complete NVMe features.
- Callbacks in BFM’s and Monitor for various events.
- Benefits
-
- Faster testbench development and more complete verification of NVMe designs.
- Easy to use command interface simplifies testbench control and configuration of NVMe Host and Controller.
- Simplifies results analysis.
- Runs in every major simulation environment.

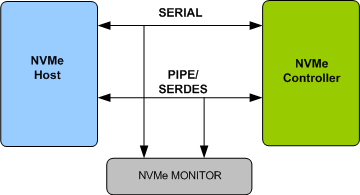

- NVMe Verification Env
-
SmartDV's NVMe Verification env contains following.
- Complete regression suite containing all the NVMe testcases to certify NVMe BFM's.
- Examples showing how to connect various components, and usage of NVMe BFM and Monitor.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
