MIPI GbD USB Verification IP

MIPI GbD USB Verification IP

MIPI GbD USB Verification IP provides a smart way to verify the MIPI GbD USB component of a SOC or a ASIC. It provides backward compatibility support for earlier versions 1.0 and 1.1 of USB specifications. The SmartDV's MIPI GbD USB 1.0/1.1 Verification IP is fully compliant with standard USB Specification 3.0/3.1/3.2 and MIPI Giga bit data with USB version 1.0/1.1. The MIPI GbD USB 1.0/1.1/ VIP can be readily customized and optimized for a wide range of specific system applications.

MIPI GbD USB Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

MIPI GbD USB Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Compliant with MIPI Giga bit debug specification version 1.0/1.1
  • Supports the network adaptor for USB
  • Supports the trace applications
  • Supports the Sneak peak applications
  • Supports the memory map in application layer
  • Supports both Debug Test System(DTS) and Target System(TS)
  • Includes Trace Wrapper Protocol(TWP)
  • Includes Sneak Peak Protocol(SPP)
  • Supports Giga bit trace data
  • Includes USB logical device for connecting Target system(TS) Network Adaptor to a USB Device Controller
  • Complete solution for thorough chip-level verification
  • Supports all types of error injection and detection
  • USB 3.0/3.1/3.2 Common support
  • Configurable PHY Interface width 8, 16 or 32 bits
  • PHY interface supports data scrambling to reduce EMI emissions
  • Comprehensive compliance testsuite for Protocol, Link, and Physical layer verification
  • Supports Low frequency periodic signaling (LFPS) for initialization and power management(U1, U2 & U3)
  • Supports Interrupt/Bulk/Isochronous/Control Transfers
  • Control transfers supported by Endpoint 0
  • Separate Endpoint Buffers for IN bound and OUT bound packets
  • Supports for USB 3.0/3.1/3.2 low power states
  • Bulk Stream support
  • Supports Lane polarity inversion
  • Supports eXtensible Host Controller Interface
  • Comprehensive model support a Host, Device, Hub, PHY
  • Configurable number of Configurations, Interfaces, Alternative Interfaces and Endpoints
  • Supports constrained randomization of protocol attributes
  • USB 3.0 support
  • Compliant with USB 3.0 specification.
  • Compliant with USB 3.0 Super speed Inter chip supplement 1.0.
  • USB 3.0 host and device with SERIAL/PIPE/SSIC interfaces
  • Supports dual-simplex, four-wire differential signaling and 8b/10b parallel interface
  • Operates at Super speed (5 Gbit/s), High(480 Mbit/s) or Full speed(12 Mbit/s) modes
  • Supports SS-OTG,SSPC-OTG Devices,SS-PO Devices and SS-EH Devices
  • Supports ADP,HNP,SRP and RSP
  • USB 3.0 host and device with SERIAL/PIPE/SSIC interfaces
  • Supports Inter-Chip Supplement to the USB Revision 3.0 Specification (Super Speed Inter-Chip) using MIPI MPHY
    • Supports MPHY Type-I operations
    • Supports MPHY all PWM 1 gear of operation
    • Supports MPHY all HS 1,2,3 gear of operation
    • Supports 1,2,4 lanes
    • Supports all types of error injection in MPHY
    • Supports All RRAP Packet types
    • Supports LS and HS burst
    • Supports all LS and HS gears
    • Supports all protocol error detection
    • Supports all MPHY protocol error injection
    • Supports RMMI and MPHY serial interface
  • Supports UTMI and PIPE interfaces.
    • USB 2.0 device and host with UTMI/ULPI interfaces.
    • Supports all types of error injection and detection.
    • Supports error injection in all the layers of USB 3.0.
  • Supports constrained randomization of protocol attributes.
  • On-the-fly protocol and data checking.
  • Notifies the testbench of significant events such as transactions, warnings, timing and protocol violations.
  • Built in coverage analysis.
  • Callbacks in host and device for various events.
  • Status counters for various events.
  • USB 3.0/3.1 Verification IP comes with complete testsuite to test every feature of USB 3.0/3.1 specification.
  • xHCI support
  • USB 3.0 OTG
    • Supported devices.
  • 1.SS-OTG
  • 2.SSPC-OTG Devices
  • 3.SS-PO Devices
  • 4.SS-EH Devices
    • Support for USB 2.0.
  • 1.SS-OTG or SSPC-OTG devices operate as USB 2.0 OTG devices.
  • 2.SS-EH operate as USB 2.0 EH.
  • 3.SS-PO operate as USB 2.0 PO devices.
    • Supported protocols.
  • 1.SRP
  • 2.HNP
  • 3.ADP
  • 4.RSP for USB 3.0
    • Supported speeds.
  • 1.SS,HS and FS
    • Supported feature selector
  • 1.b_hnp_enable
  • 2.a_hnp_support
  • 3.a_alt_hnp_support
  • 4.NTF_HOST_REL
  • 5.B3_RSP_ENABLE
    • Support the all timeout condition
  • 1.a_wait_vfall_timout
  • 2.a_wait_vrise_timout
  • 3.a3_polling_tmout
  • 4.a3_recovery_tmout
  • 5.a3_rx_detect_active_tmout
  • 6.rsp_cnf_err_tmout
  • 7.rsp_ack_err_tmout
  • 8.rsp_wrst_err_timout
  • 9.b3_polling_tmout
  • 10.b3_recovery_tmout
  • 11.b3_rx_detect_active_tmout
    • Combination of SSPC-OTG device communication
  • 1.SSPC-OTG device to SSPC-OTG device
  • 2.SSPC-OTG device to SS-OTG device
  • 3.SS-OTG device to SSPC-OTG device
  • 4.SSPC-OTG device to USB 2.0 OTG
  • 5.USB 2.0 OTG device to SSPC-OTG device
  • USB 3.1 support
  • Compliant with USB 3.1 specification version 1.0
  • Supports dual-simplex, four-wire differential signaling and 128b/132b parallel interface
  • Operates at SuperSpeedPlus (10 Gbit/s), Super speed (5 Gbit/s), High speed(480 Mbit/s) or Full speed(12 Mbit/s) modes
  • Backward compatible with USB 3.0
  • USB 3.1 host and device with SERIAL/PIPE interfaces
  • Supports specific LFPS patterns(SCD1/SCD2) for Super speed plus ports
  • Supports SuperSpeedPlus LFPS Based PWM Message (LBPM)
  • Supports SuperSpeedPlus Precision Time Measurement
  • Supports SuperSpeedPlus Transaction Reordering for periodic and asynchronous packets
  • USB 3.2 support
  • Supports dual-lane for Gen1 and Gen2
  • Backward compatible with USB 3.1 and USB 3.0
  • USB 3.2 host and device with dual-lane SERIAL/PIPE interface
  • Supports Deskew
  • Supports Data striping in dual lanes
  • Supports dual-simplex, four wire differential signaling and 128b/132b parallel interface
  • Supports Configuration summary descriptor
Benefits
  • Rich set of configuration parameters to control the functionality
  • Faster testbench development and more complete verification of MIPI GBD for USB 3.0/3.1/3.2 designs.
  • Easy to use command interface simplifies testbench control and configuration of host and device.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

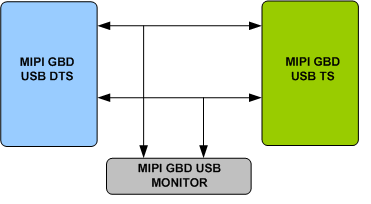

MIPI GBD USB 3.0/3.1/3.2 Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's MIPI GBD USB 3.0/3.1/3.2 Verification env contains following.

  • Complete regression suite containing all the MIPI GBD USB 3.0/3.1/3.2 testcases.
  • Examples showing how to connect various components, and usage of BFM and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
