MIPI DSI-2 Verification IP provides an smart way to verify the MIPI DSI-2 bi-directional two-wire/three-wire bus. The SmartDV's MIPI DSI-2 Verification IP is fully compliant with version 2.0 MIPI Alliance specification for serial Interface and provides the following features.
MIPI DSI-2 Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
MIPI DSI-2 Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Full MIPI DSI-2 Tx and Rx functionality.
- Supports 2.0 MIPI DSI-2 Specification.
- Support both DPHY and CPHY
- Supports MIPI DBI specification
- Supports MIPI DCS specification
- Supports all types of D-PHY short packets
- Supports all types of D-PHY long packets
- Supports all types of C-PHY short packets
- Supports all types of C-PHY long packets
- Supports all lane configuration
- Supports 8 lane configuration of DPHY layer
- Supports 4 lane configuration of CPHY layer
- Supports multiple packets per transmission
- Supports differential and single ended mode of operation
- Supports PPI interface
- Supports all BTA commands
- Supports Link Distribution Function
- Supports skew calibration
- Supports data scrambling
- Supports below data rates in DPHY layer
- 80 to 1500 Mbps per lane without deskew calibration
- Upto 2500Mbps per lane with deskew calibration
- Upto 12000Mbps per lane with equalization
- Supports below data rates in CPHY layer
- 17.1 Gbps for 3 lanes
- 5.7 Gbps for 1 lane
- Supports Display Stream Compression (DSC)
- Various kind of Tx and Rx errors generation and detection
- SoT error
- Sync error
- Word count error
- Sync length error
- Checksum error
- ECC error
- Supports detection of all timeouts and injection of various timeout errors
- Supports both high speed and low power packet transmission and reception
- Supports fine grain control of timing parameters
- Status counters for various events in bus.
- Operates as a Tx,Rx, or both.
- Monitor,Detects and notifies the testbench of all protocol and timing errors.
- Callbacks in node transmitter, receiver and monitor for user processing of data.
- MIPI DSI-2 Verification IP comes with complete test suite to test every feature of MIPI DSI-2 specification.
- Functional coverage for complete MIPI DSI-2 features
- Benefits
-
- Faster testbench development and more complete verification of MIPI DSI-2 designs.
- Easy to use command interface simplifies testbench control and configuration of Tx,Rx and monitor
- Simplifies results analysis.
- Runs in every major simulation environment.

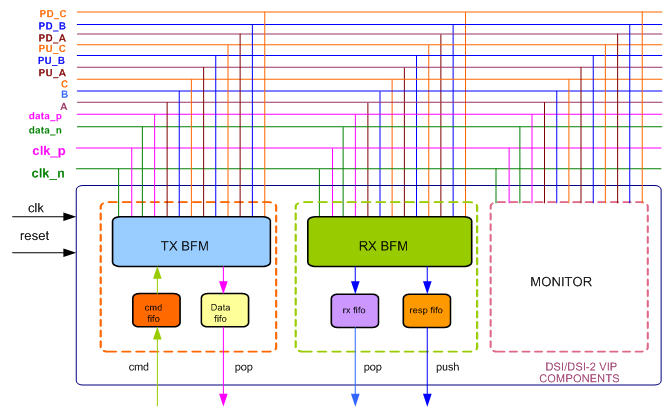

- MIPI DSI-2 Verification Env
-
SmartDV's MIPI DSI-2 Verification env contains following.
- Complete regression suite containing all the MIPI DSI-2 testcases.
- Examples showing how to connect various components, and usage of Tx,Rx and Monitor.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
