MIPI CSI-2 Verification IP

MIPI CSI-2 Verification IP

MIPI CSI-2 Verification IP Provides the mobile industry a standard, robust, scalable, low-power, high-speed, cost-effective interface that supports a widerange of imaging solutions for mobile devices. MIPI CSI-2 Verification IP provides an smart way to verify the MIPI CSI-2 standard data transmission and control interfaces between transmitter and receiver. The SmartDV's MIPI CSI-2 Verification IP is fully compliant with version 4.0 MIPI Alliance specification for serial Interface and provides the following features.

MIPI CSI-2 Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

MIPI CSI-2 Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Full MIPI CSI2 Tx/Rx functionality
  • Compliant with MIPI CSI2 Bus Specification v1.0 to v1.3, v2.0 to v2.10,v3.0,v4.0.
  • Supports both DPHY and CPHY.
  • Supports forward escape ULPM on all Data Lanes.
  • Supports image applications with varying pixel formats from 6 to 24 bits per pixels.
  • Supports all types of short packets.
  • Supports all types of long packets.
  • Supports all lane configurations.
  • Supports all virtual channel identifier.
  • Supports virtual channel extension field.
  • Supports line and frame synchronization packets.
  • Supports data scrambling.
  • Supports skew calibration.
  • Supports Smart Region of Interest (SROI).
  • Supports Unified Serial Link (USL).
  • Supports Always-On Sentinel Conduit (AOSC).
  • Supports Latency Reduction and Transport Efficiency(LRTE)
  • Supports Glitch insertion in multiple lanes.
  • Supports various methods to interleave the transmission of different image data formats
    • Interleaved data transmission using data type value
    • Interleaved data transmission using virtual channels
  • Supports various methods to interleave the data transmission using data type value
    • Packet level interleaved data transmission
    • Frame level interleaved data transmission
  • Supports PHY-Protocol Interface (PPI).
  • Supports high speed mode of operation.
  • Supports various kinds of Tx and Rx errors generation and detection
    • SoT error
    • Sync error
    • Word count error
    • Sync length error
    • Checksum error
    • ECC error
  • Monitor Detects and notifies the testbench of all protocol and timing errors.
  • Supports constraints Randomization.
  • Supports Compression for RAW Data Types.
  • Status counters for various events in bus.
  • Callbacks in node transmitter, receiver and monitor for user processing of data.
  • MIPI CSI-2 Verification IP comes with complete test suite to test every feature of MIPI CSI-2 specification.
  • Functional coverage for complete MIPI CSI-2 features.
  • Control bus is supported by means of CSI.
Benefits
  • Faster testbench development and more complete verification of MIPI CSI-2 designs.
  • Easy to use command interface simplifies testbench control and configuration of Tx,Rx and monitor
  • Simplifies results analysis.
  • Runs in every major simulation environment.

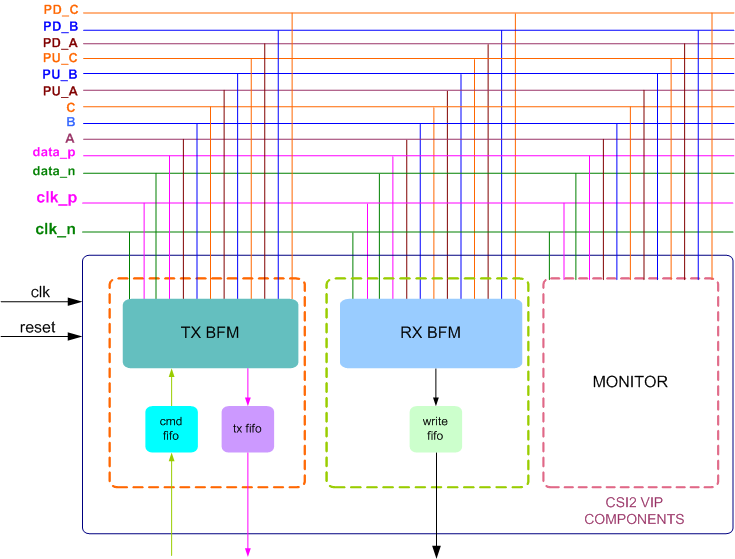

MIPI CSI-2 Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's MIPI CSI-2 Verification env contains following.

  • Complete regression suite containing all the MIPI CSI-2 testcases.
  • Examples showing how to connect various components, and usage of Tx,Rx and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
Smart VIPDebug

Smart VIPDebug provides easy way to debug the MIPI CSI-2 Verification IP Protocol. This links waveform, log file with specs and makes debugging easier

Smart VIPDebug supports both VCD and FSDB files for debugging.

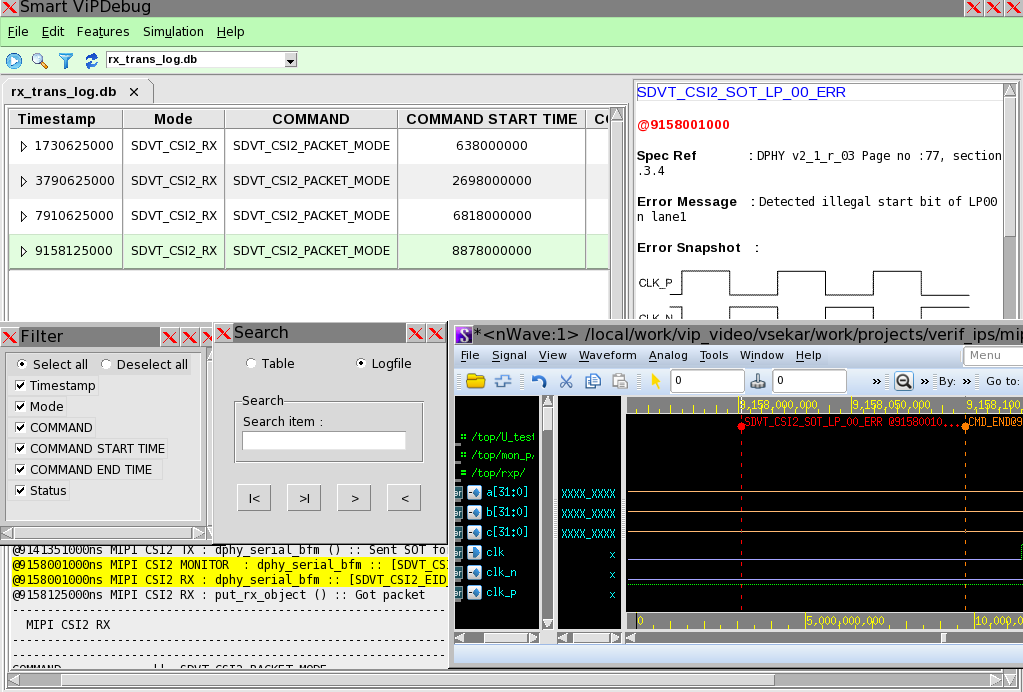

MIPI CSI-2 Verification IP Smart VIPDebug
