I2C Verification IP

I2C Verification IP

I2C Verification IP provides an smart way to verify the I2C bi-directional two-wire bus. The SmartDV's I2C Verification IP is fully compliant with version 2.1, 3.0 and 6.0 of the Philip's I2C-Bus Specification and provides the following features.

I2C Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

I2C Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Supports 6.0 I2C specifications.
  • Full I2C Master and Slave functionality.
  • Start, repeat start and stop for all possible transfers.
  • Supports all I2C clocking speeds including HS mode, Fast mode, Fast mode plus and Ultra-fast mode.
  • 7b/10b configurable Slave address.
  • Allows testing of various bus traffics for Read, Write, General Call and CBUS.
  • Supports complex sequence of 7/10 bit with repeated start command sequences.
  • Supports Bus-accurate timing.
  • Supports START byte generation and handling.
  • Supports Master/Slave arbitration and clock synchronization.
  • Supports Glitch insertion and detection.
  • Supports insertion of wait states by Slave and Master.
  • Supports AT24C1024 EEPROM memory model which supports 256 bytes Page Write Mode.
  • Supports Random and Sequential Read Modes.
  • Supports insertion of errors
    • Master aborting in middle of transaction.
    • Master doing ACK on last read access.
    • Master continues on NACK after write NACK from Slave.
    • Random and Periodic clock period stretching by Slave.
    • Random Write NACK insertion by Slave.
    • Glitch insertion on clock and data at various windows.
  • Notifies the testbench of significant events such as transactions, warnings, timing and protocol violations.
  • Callbacks in Master and Slave for various events.
  • Status counters for various events in bus.
  • Functional coverage for complete I2C specifications.
  • I2C Verification IP comes with complete testsuite to test every feature of I2C specification.
Benefits
  • Faster testbench development and more complete verification of I2C designs.
  • Easy to use command interface simplifies testbench control and configuration of TX and RX.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

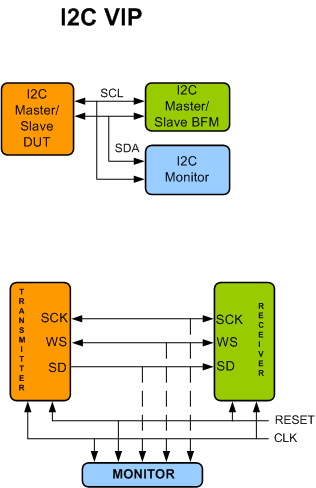

I2C Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's I2C Verification env contains following.

  • Complete regression suite containing all the I2C testcases to certify I2C Master/Slave device.
  • Examples showing how to connect various components, and usage of Master, Slave and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
