SGMII/1000Base-KX Verification IP

SGMII/1000Base-KX Verification IP

The SGMII/1000Base-KX Verification IP is compliant with IEEE 802.3 specifications and verifies serial interfaces of designs with a 1G Ethernet interface SMII/1000Base-KX. It can work with SystemVerilog,Vera, SystemC, E and Verilog HDL environment. SGMII/1000BASE-KX verification IP is developed by experts in Ethernet, who have developed ethernet products in companies like Intel, Cortina-Systems, Emulex, Cisco. We know what it takes to verify a ethernet product.

SGMII/1000Base-KX Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

SGMII/1000Base-KX Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Follows 1000Base-KX specification as defined in IEEE 802.3
  • Follows SGMII specification 1.8
  • Supports SGMII auto-negotation
  • Supports backplane auto-negotation for 1000BASE-KX
  • Supports injection of following errors
    • Oversize, undersize, inrange, out of range Packet size errors
    • Missing SPD/EPD/SFD framing errors
    • CRC Error
    • Wrong /T/R/ insertion
    • Disparity error injection
    • Invalid /D/ and /K/ character injection
    • Variable preamble and IPG insertion
  • Comes with transmitter and receiver BFM for SGMII/1000BASE-KX
  • Monitor supports detection of all protocol violations.
  • Supports Pause frame generation and detection.
  • Built in coverage analysis.
Benefits
  • Faster testbench development and more complete verification of SGMII/1000BASE-KX designs.
  • Easy to use command interface simplifies testbench control and configuration of SGMII/1000BASE-KX TX and RX.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

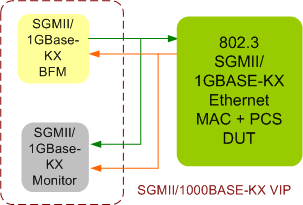

SGMII/1000Base-KX Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's SGMII/1000Base-KX Verification env contains following.

  • Complete regression suite (UNH) containing all the testcases.
  • Examples showing how to connect various components, and usage of TXRX BFM and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
