The G_999_1 Verification IP is compliant with ITU-T G.999.1 specifications and verifies MAC-to-PHY interfaces of designs with a 1G Ethernet interface GMII/GMII TBI. It can work with SystemVerilog,Vera, SystemC, E and Verilog HDL environment. G_999_1 Verification IP is developed by experts in Ethernet, who have developed ethernet products in companies like Intel, Cortina-Systems, Emulex, Cisco. We know what it takes to verify a ethenet product.
G.999.1 Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
G.999.1 Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Follows G.999.1 specification as defined in ITU-T standard
- Supports fragmentation
- Supports with and without Ethernet adaption.
- Supports full duplex and half duplex of operation
- Supports Pause frame generation and detection.
- Supports all types of G_999_1 TX and RX errors insertion/detection.
- Oversize, undersize, inrange, out of range Packet size errors
- Missing SPD/EPD/SFD framing errors
- SFD on wrong lane
- CRC Error
- Disparity error injection
- Invalid /D/ and /K/ character injection
- Variable preamble and IPG insertion

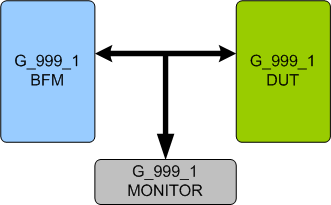

- Comes with G_999_1 Tx BFM, G_999_1 Rx BFM, and G_999_1 Monitor
- Monitor supports detection of all protocol violations.
- Built in coverage analysis.
- Callbacks in master and slave for various events
- Status counters for various events in bus
- Benefits
-
- Faster testbench development and more complete verification of G_999_1 designs
- Easy to use command interface simplifies testbench control and configuration of G_999_1 TX and G_999_1 RX
- Simplifies results analysis
- Runs in every major simulation environment
- G_999_1 Verification Env
-
SmartDV's G_999_1 Verification env contains following.
- Complete regression suite (UNH) containing all the testcases.
- Examples showing how to connect various components, and usage of TXRX BFM and Monitor.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
