Fibre Channel Verification IP provides an smart way to verify the Fibre channel MAC, PCS and serdes of a SOC or a ASIC. The SmartDV's Fibre Channel verification IP is fully compliant with standard Fibre channel Specification (FC-FS-6 Rev 0.1, FC-LS-4 Rev 4.03, FC-PI-7 Rev 0.13) and provides the following features.
Fibre Channel Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
Fibre Channel Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Compliant with the Fibre Channel framing and signaling specification FC-FS-6, Rev 0.1.
- Compliant with the Fibre Channel link service specification FC-LS-4, Rev 4.03.
- Compliant with the Fibre Channel physical interface specification FC-PI-7, Rev 0.13.
- Compliant with the Fibre Channel protocol for SCSI specification FCP-4.
- Compliant with SCSI Architecture Model 3/4/5 (SAM-3/4/5).
- Supports following interfaces
- 1 bit (serial) and 8,10,20,32,40,64 bit (parallel)
- 8B/10B,64B/66B,256B/257B Encoder/Decoder interface
- 32 bit Dword Primitive interface
- Dword level transport interface
- Complete Frame transaction level interface
- Supports 256GFC, 128GFC, 64GFC, 32GFC, 16GFC, 8GFC, 4GFC, 2GFC and 1GFC.
- Supports speed switching/negotiation.
- Supports L, N, and F ports.
- Supports multiple initiators and multiple targets.
- Supports generation of all types of FC frames.
- Supports verification of all layers of Fibre Channel.
- Supports Port/Process/Fabric Login/Logout.
- Supports Transmitter training.
- Supports Forward Error Correction (FEC).
- Supports Energy Efficient Fibre Channel.
- Supports all SCSI commands.
- Supports multiple outstanding exchanges.
- Supports several queuing attribute models.
- Supports Multiple Logical Unit Number (LUN) addressing.
- Supports completely configurable target/device discovery.
- Supports error detection and recovery management.
- Supports all type of FC timers.
- Supports error injection and detection at each layer
- Invalid frame fields
- Invalid EOF and SOF
- Oversize and undersize frames
- Disparity errors
- Invalid code group errors
- Invalid K and D character
- CRC error.
- Supports Retry control.
- Proficiency to generate random frames and respond to frames in directed or randomized fashion.
- Rich set of configuration parameters to control Fibre Channel functionality.
- Monitors, detects and notifies the test bench of all protocol and timing errors.
- Supports constrained randomization of protocol attributes.
- Status counters for various events.
- Callbacks in initiator, target and monitor for various events.
- Fibre Channel Verification IP comes with complete test suite to test every feature of Fibre Channel specification.
- Functional coverage for complete Fibre Channel features.
- Benefits
-
- Faster test bench development and more complete verification of FC Designs.
- Easy to use command interface simplifies test bench control and configuration of initiator, target and monitor.
- Simplifies results analysis.
- Integrates easily into OpenVera, SytemVerilog,SystemC,Verilog
- Runs in every major simulation environment.

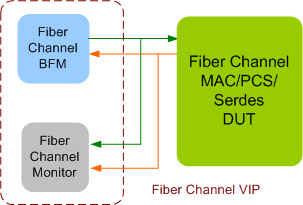

- Fibre Channel Verification Env
-
SmartDV's Fibre Channel Verification env contains following.
- Complete regression suite containing all the Fibre Channel testcases.
- Examples showing how to connect various components, and usage of Tx,Rx and Monitor.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
