The 400GBase-KR4/KR8/KR16 Ethernet Verification IP is compliant with IEEE 802.3bs specifications and verifies MAC-to-PHY layer interfaces of designs with a 400GBase-KR4/KR8/KR16 Ethernet interface. It can work with SystemVerilog, Vera, SystemC, E and Verilog HDL environment. 400GBase-KR4/KR8/KR16 verification IP is developed by experts in Ethernet, who have developed ethernet products in companies like Intel, Cortina-Systems, Emulex, Cisco. We know what it takes to verify a ethernet product.
400GBase-KR4/KR8/KR16 Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
400GBase-KR4/KR8/KR16 Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Supports 400GBase-KR4/KR8/KR16 interfaces as per the specification defined in IEEE 802.3bs
- Supports scrambler
- Supports FEC
- Supports CDAUI_16
- Supports CDMII
- Supports backplane auto-negotation
- Supports CDR for serial protocols
- Supports MDIO slave and master model as per Clause 22 and Clause 45
- Supports Glitch insertion and detection
- Supports Pause frame generation and detection.
- Supports all types of 400GBase-KR4/KR8/KR16 TX and RX errors insertion/detection.
- Oversize, undersize, inrange, out of range Packet size errors
- Missing SPD/EPD/SFD framing errors
- SFD on wrong lane
- CRC Error
- Lane skew insertion
- Invalid /D/ and /K/ character injection
- Variable preamble and IPG insertion
- Invalid block code insertion
- Sync bit corruption
- FEC error injection
- Scrambler error injection

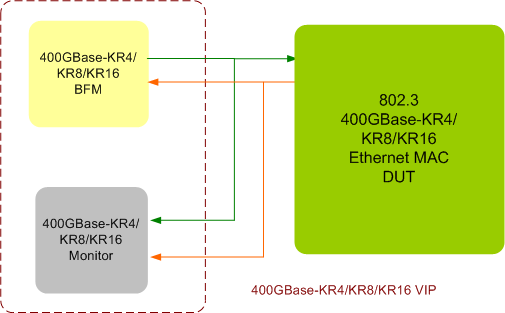

- Comes with 400GBase-KR4/KR8/KR16 Tx BFM, 400GBase-KR4/KR8/KR16 Rx BFM, and 400GBase-KR4/KR8/KR16 PCS Monitor
- Monitor supports detection of all protocol violations.
- Built in coverage analysis.
- Callbacks in master and slave for various events
- Status counters for various events in bus
- Benefits
-
- Faster testbench development and more complete verification of 400GBase-KR4/KR8/KR16 designs.
- Easy to use command interface simplifies testbench control and configuration of 400GBase-KR4/KR8/KR16 TX and RX.
- Simplifies results analysis.
- Runs in every major simulation environment.
- 400GBase-KR4/KR8/KR16 Verification Env
-
SmartDV's 400GBase-KR4/KR8/KR16 Verification env contains following.
- Complete regression suite containing all the testcases.
- Examples showing how to connect various components, and usage of TXRX BFM and Monitor.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
