The Ethernet 200G,400G Verification IP is compliant with IEEE 802.3 specifications and verifies MAC-to-PHY and PHY-to-MAC layer interfaces of designs with a Ethernet 200G,400G interface. It can work with SystemVerilog,Vera, SystemC, E and Verilog HDL environment. Ethernet 200G,400G Verification IP is developed by experts in Ethernet, who have developed ethernet products in companies like Intel, Cortina-Systems, Emulex, Cisco. We know what it takes to verify a ethernet product.
Ethernet 200G,400G Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
Ethernet 200G,400G Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Supports 200G,400G interfaces as per the specifications defined in IEEE 802.3bs
- Supports 200GMII and 400GMII
- Supports 200GXS and 400GXS
- 200GBase_KR8
- 200GBase_KR4
- 200GBase_KR2
- 400GBase_KR4
- 400GBase_KR8
- 400GBase_KR16
- Supports CDAUI_16
- Supports CDMII
- Supports FEC
- Supports scrambler
- Supports backplane auto-negotiation
- Supports Link training
- Supports Pause frame generation and detection.
- Supports MDIO slave and master model as per Clause 22 and Clause 45
- Glitch insertion and detection
- PCS to Serdes interface supports all widths
- Supports CDR for serial protocols
- Supports G.999.1 Interface
- Full support for IEEE 802.1AZ (Energy Efficient Ethernet)
- Full support for IEEE 1588-2002 and IEEE 1588-2008
- Supports the following Upper layer protocols:
- IPV4
- IPV6o TCP
- UDP
- ICMP
- ARP
- GRE
- NVGRE
- VXLAN
- PPPOE
- EAPoL
- FCOE
- RARP
- IPsec
- MACSEC
- Wake on LAN
- Slow protocol
- Supports IP in IP
- Supports Q in Q
- Ethernet Verification IP comes with complete UNH Test suite
- Supports all types of TX and RX errors insertion/detection at each layer.
- Oversize, undersize, inrange, out of range Packet size errors
- Missing SPD/EPD/SFD framing errors
- SFD on wrong lane
- CRC Error
- Lane skew insertion
- Invalid /D/ and /K/ character injection
- Variable preamble and IPG insertion
- Invalid block code insertion
- Sync bit corruption
- FEC error injection
- Scrambler error injection
- Comes with Tx BFM,Rx BFM, and Monitor.
- Monitor supports detection of all protocol violations.
- Built in coverage analysis.
- Status counters for various events in bus
- Benefits
-
- Faster testbench development and more complete verification of Ethernet 200G,400G designs
- Easy to use command interface simplifies testbench control and configuration of TX and RX
- Simplifies results analysis
- Runs in every major simulation environment

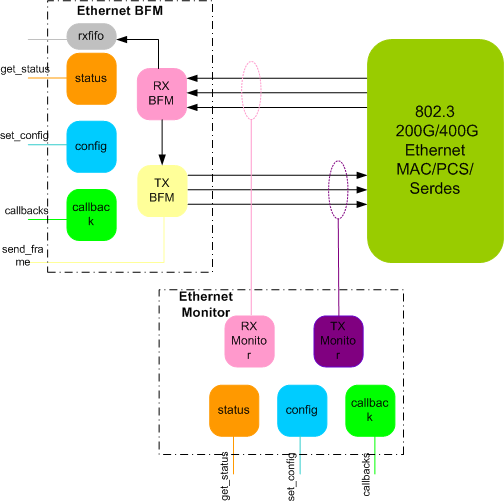

- Ethernet 200G,400G Verification Env
-
SmartDV's Ethernet 200G,400G Verification env contains following.
- Complete regression suite (UNH) containing all the Ethernet 200G,400G testcases.
- Examples showing how to connect various components, and usage of TXRX BFM and Monitor.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
