The Ethernet 1G Verification IP is compliant with IEEE 802.3 Specification and verifies MAC-to-PHY and PHY-to-MAC layer interfaces of designs with a Ethernet 1G interface. It can work with SystemVerilog, Vera, SystemC, E and Verilog HDL environment.Ethernet 1G verification IP is developed by experts in Ethernet, who have developed ethernet products in companies like Intel, Cortina-Systems, Emulex, Cisco. We know what it takes to verify a ethernet product.
Ethernet 1G Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
Ethernet 1G Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Supports 1G
- Supports GMII
- Supports TBI (i.e Output of 8b/10b PCS)
- Supports SGMII(10M/100M/1000M) as per specification 1.8
- Supports QSGMII as per specification 1.2
- Supports USGMII as per specification 3.0 and 3.1(5G and 10G)
- Supports RGMII(10M/100M/1000M),RTBI as per specification 2.0
- Supports 1000Base-KX
- Supports 1GBASE-SX and 1GBASE-LX
- Supports clause 73 backplane auto-negotiation for 1000Base-KX
- Supports clause 37 auto-negotiation
- Supports SGMII auto-negotiation
- Supports QSGMII auto-negotiation
- Supports USGMII auto-negotiation and packets
- Supports full duplex and half duplex of operation
- Supports G.999.1 Interface
- Ethernet Verification IP comes with complete UNH Test suite
- Supports the Upper layer protocols
- Supports IP in IP
- Supports Q in Q
- Full support for IEEE 802.1AZ (Energy Efficient Ethernet)
- Full support for IEEE 1588-2002 and IEEE 1588-2008
- PCS to Serdes interface supports all widths
- Supports CDR for serial protocols
- Supports MDIO slave and master model as per Clause 22 and Clause 45
- Supports Glitch insertion and detection
- Supports Pause frame generation and detection
- Supports all types of TX and RX errors insertion/detection at each layer.
- Under and oversize frame.
- CRC errors
- Framing errors
- Pause frame errors
- Disparity and Auto-negotiation errors
- Invalid code group insertion
- Invalid /K/ characters insertion
- Lane Skew insertion
- Invalid AN sequence error insertion
- Missing /K/ characters for packet boundries.

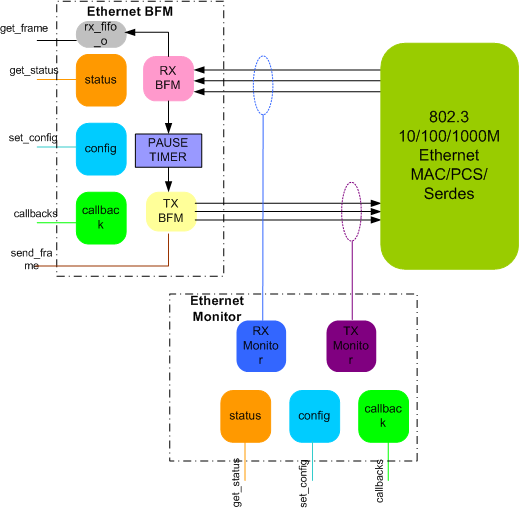

- Comes with Tx BFM, Rx BFM, and Monitor
- Monitor supports detection of all protocol violations
- Built in coverage analysis
- Callbacks in master and slave for various events
- Status counters for various events in bus
- Benefits
-
- Faster testbench development and more complete verification of Ethernet 1G designs.
- Easy to use command interface simplifies testbench control and configuration of Ethernet 1G TX and RX.
- Simplifies results analysis.
- Runs in every major simulation environment.
- Ethernet 1G Verification Env
-
SmartDV's Ethernet 1G Verification env contains following.
- Complete regression suite containing all the testcases.
- Examples showing how to connect various components, and usage of TX,RX BFM and Monitor.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
