The SmartDV's eCPRI Verification IP is fully compliant with eCPRI Specification V2.0 and verifies eCPRI interfaces. It includes an extensive test suite covering most of the possible scenarios. It performs all possible protocol tests in a directed or a highly randomized fashion which adds the possibility to create the widest range of scenarios to verify the DUT effectively.
eCPRI Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
eCPRI Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Compliant with eCPRI Specification V2.0.
- Complete eCPRI Tx/Rx functionality.
- Supports the eCPRI layer of the eCPRI specification.
- Supports 5G and enables increased efficiency.
- Supports Ethernet 10G/25G/40G/100G Ethernet Speeds
- Supports the following message types.
- IQ Data
- Bit sequence
- Real time control data
- Generic data transfer
- Remote memory access
- One way Delay Measurement
- Remote reset
- Event Indication
- IWF start-up
- IWF operation
- IWF mapping
- IWF delay control
- Vendor Specific
- Supports Control and Management data transfer.
- Supports data transfer through Ethernet/UDP/IP Interfaces.
- Full support for IEEE 1588-2008 and IEEE 1588-2019
- Supports delay management.
- Supports 8B/10B line coding
- Supports insertion of scrambler errors.
- Detects and reports all the errors in Ethernet and CPRI layer
- Glitch insertion and detection.
- Monitors, detects and notifies the test bench of significant events such as transactions, warnings, timing and protocol violations.
- Supports constraints Randomization.
- Status counters for various events on bus.
- Supports bus accurate timing and timing checks.
- Callbacks in Master, Slave and Monitor for user processing of data.
- eCPRI Verification IP comes with complete test suite to test every feature of eCPRI specification.
- Functional coverage for complete eCPRI features.
- Benefits
-
- Faster testbench development and more complete verification of eCPRI designs.
- Easy to use command interface simplifies testbench control and configuration of Master and Slave.
- Simplifies results analysis.
- Runs in every major simulation environment.

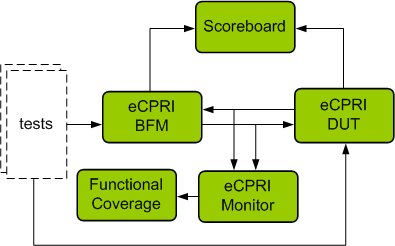

- eCPRI Verification Env
-
SmartDV's eCPRI Verification env contains following.
- Complete regression suite containing all the eCPRI testcases.
- Examples showing how to connect various components, and usage of Master,Slave and Monitor.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation contains User's Guide and Release notes.
