AMBA AXI4-Stream Verification IP provides an smart way to verify the ARM AMBA AXI4-Stream component of a SOC or a ASIC. The SmartDV's AMBA AXI4-Stream Verification IP is fully compliant with standard AMBA AXI4-Stream Specification.
AMBA AXI4-Stream Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
AMBA AXI4-Stream Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Compliant with the latest ARM AMBA AXI4-Stream Protocol Specification.

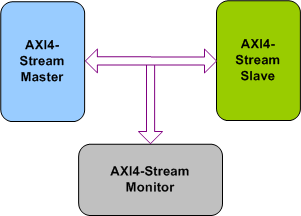

- Supports AXI4-Stream Master, Slave, Monitor and Checker.
- Supports all ARM AMBA AXI4-Stream data widths.
- Support for all Data streams including Byte stream, Continuous aligned stream, Continuous unaligned stream and Sparse stream.
- Support for single byte, packet and frame transfers.
- Transfer interleaving support.
- Support for upsizing, downsizing and merging.
- Supports constrained randomization of protocol attributes.
- Slave supports fine grain control of response.
- Programmable wait states or delay insertion.
- Ability to inject errors during transfer.
- Ability to configure the width of all signals.
- Support for bus inactivity detection and timeout.
- Programmable Timeout insertion.
- Supports FIFO memory.
- Rich set of configuration parameters to control AXI4-Stream functionality.
- On-the-fly protocol and data checking.
- Notifies the testbench of significant events such as transactions, warnings, timing and protocol violations.
- Built in coverage analysis.
- Callbacks in Master, Slave and Monitor for various events.
- Status counters for various events on bus.
- AXI4-Stream Verification IP comes with complete testsuite to test every feature of ARM AMBA AXI4-Stream specification.
- Benefits
-
- Faster testbench development and more complete verification of ARM AMBA AXI4-Stream designs.
- Easy to use command interface simplifies testbench control and configuration of Master and Slave.
- Simplifies results analysis.
- Runs in every major simulation environment.
- AMBA AXI4-Stream Verification Env
-
SmartDV's AMBA AXI4-Stream Verification env contains following.
- Complete regression suite containing all the AMBA AXI4-Stream testcases.
- Examples showing how to connect various components, and usage of BFM and Monitor.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
