ARINC 664 Verification IP

ARINC 664 Verification IP

The ARINC 664 Verification IP is compliant with ARINC SPECIFICATION 664 PART 7 and verifies MAC-to-PHY and PHY-to-MAC layer interfaces of designs with a Ethernet interface. It can work with SystemVerilog, Vera, SystemC, E and Verilog HDL environment.The SmartDV's ARINC 664 Verification IP is fully compliant with ARINC SPECIFICATION 664 PART 7 and provides the following features

ARINC 664 Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

ARINC 664 Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Supports IEEE 802.3 10/100 Mbit/s Full duplex Ethernet links
  • Supports all word structures and protocol necessary to establish bus communication as per the specs.
  • Supports simplex,twisted shielded pair data bus standard Mark.
  • Supports LRU with multiple transmitters and receivers communicating on different buses.
  • Supports Traffic shaping in accordance with Bandwidth Allocation Gap (BAG)
  • Supports the following Upper layer protocols:
    • IPV4
    • UDP
  • Supports Transmit Redundancy Controller.
  • Glitch insertion and detection
  • Supports all types of errors insertion/detection as given below:
    • LDU Sequence Number Error
    • Parity Errors
    • Word Count Errors
    • CRC Errors
    • Time Out Errors
  • Notifies the test bench of significant events such as transactions, warnings and protocol violations.
  • Status counters for various events.
  • Monitor supports detection of all protocol violations
  • Callbacks in Transmitter and Receiver for various events
  • Built in functional coverage analysis.
  • FIFO depth programmable.
  • ARINC 664 Verification IP comes with complete testsuite to verify each and every feature of ARINC 664 Part 7 specification.
Benefits
  • Faster testbench development and more complete verification of ARINC 664 designs.
  • Easy to use command interface simplifies testbench control and configuration of ARINC 664 TX and RX.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

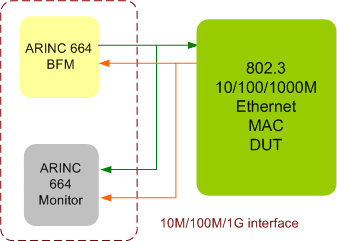

ARINC 664 Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's ARINC 664 Verification env contains following.

  • Complete regression suite containing all the testcases.
  • Examples showing how to connect various components, and usage of TX,RX BFM and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
