100GBase-KR10/CR10/SR10/LR4 VIP

100GBase-KR10/CR10/SR10/LR4 VIP

The 100GBase-KR10/CR10/SR10/LR4 Ethernet Verification IP is compliant with IEEE 802.3ba specifications and verifies MAC-to-PHY layer interfaces of designs with a 10G Ethernet interface 100GBase-KR10/CR10/SR10/LR4. It can work with SystemVerilog, Vera, SystemC, E and Verilog HDL environment. 100GBase-KR10/CR10/SR10/LR4 verification IP is developed by experts in Ethernet, who have developed ethernet products in companies like Intel, Cortina-Systems, Emulex, Cisco. We know what it takes to verify a ethenet product.

100GBase-KR10/CR10/SR10/LR4 VIP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

100GBase-KR10/CR10/SR10/LR4 VIP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Supports 100GBase-KR10/CR10/SR10/LR4 interface as per the specification defined in IEEE 802.3ba
  • Supports scrambler
  • Supports FEC
  • Supports backplane auto-negotation
  • Supports 100GBASE-KP4 with PMA enable.
  • Supports Gray coding and Precoding as per Spec IEEE 802.3
  • Supports all types of 100GBase-KR10/CR10/SR10/LR4 TX and RX errors insertion/detection.
    • Oversize, undersize, inrange, out of range Packet size errors
    • Missing SPD/EPD/SFD framing errors
    • SFD on wrong lane
    • CRC Error
    • Lane skew insertion
    • Disparity error injection
    • Invalid /D/ and /K/ character injection
    • Variable preamble and IPG insertion
    • Invalid block code insertion
    • Sync bit corruption
    • FEC error injection
    • Scrambler error injection
  • Comes with 100GBase-KR10/CR10/SR10/LR4 Tx BFM, 100GBase-KR10/CR10/SR10/LR4 Rx BFM, and 100GBase-KR10/CR10/SR10/LR4 PCS Monitor
  • Monitor supports detection of all protocol violations.
  • Supports Pause frame generation and detection.
  • Built in coverage analysis.
Benefits
  • Faster testbench development and more complete verification of 100GBase-KR10/CR10/SR10/LR4 designs.
  • Easy to use command interface simplifies testbench control and configuration of 100GBase-KR10/CR10/SR10/LR4 TX and RX.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

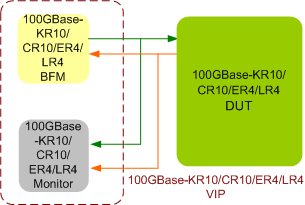

100GBase-KR10/CR10/SR10/LR4 Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's 100GBase-KR10/CR10/SR10/LR4 Verification env contains following.

  • Complete regression suite containing all the testcases.
  • Examples showing how to connect various components, and usage of TXRX BFM and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
