PMBus Synthesizable Transactor

PMBus Synthesizable Transactor

PMBus Synthesizable Transactor provides an smart way to verify the PMBus component of a SOC or a ASIC in Emulator or FPGA platform. The SmartDV's PMBus Synthesizable Transactor is fully compliant with standard PMBus 1.3.1 Specification and provides the following features.

Features
  • Fully compatible with PMBus 1.3.1 Specification
  • Full PMBus Master and Slave functionality
  • Supports all PMBus command codes as per the specifications
  • Supports programmable clock frequency of operation
  • Supports Timeout detection and generation
  • Supports Alert generation and handling
  • Supports Bus-accurate timing
  • Supports Packet Error Checking(PEC)
  • Supports Master/Slave arbitration and clock synchronization
  • Supports Glitch insertion and detection
  • Supports Fault Management and Reporting feature
  • Supports re-synchronization of Slave
  • Supports injection of errors and detection
    • Master abort in middle of transaction
    • Master doing ACK on last read access
    • Master continue on NACK after write NACK from Slave
    • Random and periodic clock period stretching by Slave
    • Random write NACK insertion error by Slave
    • Packet error check(PEC) error
    • NACK for PEC code by Slave
    • ACK for PEC code by Master
    • Master asserted stop condition before PEC byte
    • NACK for Command code byte by Slave
    • NACK for second address byte after repeated start to same Slaves
    • NACK for write size byte
    • NACK for read size byte
    • More than expected bytes were sent or received
    • Less than expected bytes were sent or received
    • Number of bytes field and actual bytes don't match
    • NACK for read data from Master for bytes which is not last byte
    • Master is driving SCL after sending NACK for read data
    • Wrong ARP address
    • Unsupported command codes
    • Glitch insertion
    • Timeout error insertion
  • Implements all the registers and commands as per the PMBus specification
  • Compares read data with expected results
  • Various kind of Master and Slave errors generation
  • Status counters for various events in bus
  • Notifies the testbench of significant events such as transactions, warnings, timing and protocol violations
  • PMBus Synthesizable Transactor comes with complete testsuite to test every feature of PMBus specification
Benefits
  • Compatible with testbench writing using SmartDV's VIP
  • All UVM sequences/testcases written with VIP can be reused
  • Runs in every major emulators environment
  • Runs in custom FPGA platforms

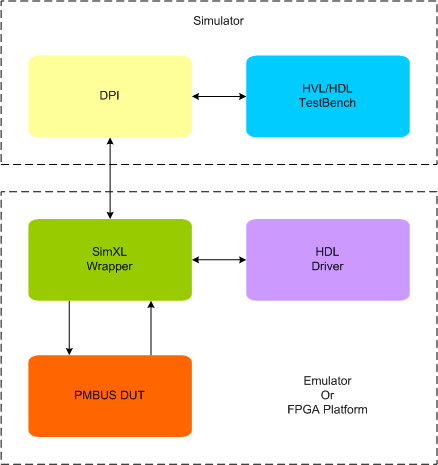

PMBus Synthesizable Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's PMBus Verification env contains following:

  • Synthesizable transactors
  • Complete regression suite containing all the PMBus testcases
  • Examples showing how to connect various components, and usage of Synthesizable Transactor
  • Detailed documentation of all DPI, class, task and functions used in verification env
  • Documentation also contains User's Guide and Release notes
