MIPI SPMI Synthesizable Transactor provides a smart way to verify the MIPI SPMI component of a SOC or a ASIC in Emulator or FPGA platform. MIPI SPMI Synthesizable Transactor provides an smart way to verify the MIPI SPMI bi-directional two-wire bus. The SmartDV's MIPI SPMI Synthesizable Transactor is fully compliant with versions 1.0 and 2.0 MIPI Alliance specification for System power management Interface and provides the following features.
- Features
-
- Supports 1.0 and 2.0 MIPI SPMI Specification
- Supports Full MIPI SPMI Master and Slave functionality
- Operates as a Master, Slave, or both
- Supports all topologies as per the MIPI SPMI specification
- Supports multiple slaves and multiple masters
- Compares read data with expected results
- Support for slave requests through Alert bit
- Support for slave request hold
- Supports following master bus connecting on bus
- Connecting by detecting SSC
- Connecting by detecting Bus idle
- Connecting by detecting Bus arbiration
- Supports following frames
- Command Frame
- Data/Address Frame
- No Response Frame
- Supports all types of SPMI commands
- Supports ACK/NACK generation as per 2.0 specs
- Supports various kind of Master and Slave errors generation
- Undefined command frame
- Command frame with parity error
- Command frame length error
- Address frame with parity error
- Data frame with parity error
- Read of unused register
- Write of an unused register
- Read using the broadcast ID or a GSID
- ACK/NACK errors
- Supports glitch monitor and injection
- Support injection of glitch at all positions of SDATA
- Support injection of glitch at all positions of SCLK
- Supports detection of glitches
- Supports extended register read/writes
- Supports optional signal also
- Supports device enumeration
- Supports master and slave arbitration
- Supports bus-accurate timing
- Supports half speed
- Status counters for various events in bus
- Notifies the testbench of significant events such as transactions, warnings, timing and protocol violations
- MIPI SPMI Synthesizable Transactor comes with complete testsuite to test every feature of MIPI SPMI specification
- Benefits
-
- Compatible with testbench writing using SmartDV's VIP
- All UVM sequences/testcases written with VIP can be reused
- Runs in every major emulators environment
- Runs in custom FPGA platforms

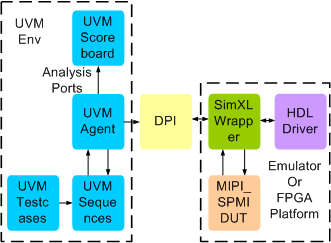

- MIPI SPMI Synthesizable Env
-
SmartDV's MIPI SPMI Verification env contains following:
- Synthesizable transactors
- Complete regression suite containing all the MIPI SPMI testcases
- Examples showing how to connect various components, and usage of Synthesizable Transactor
- Detailed documentation of all DPI, class, task and functions used in verification env
- Documentation also contains User's Guide and Release notes
