MIL STD 1553 Synthesizable Transactor provides a smart way to verify the MIL STD 1553 component of a SOC or a ASIC in Emulator or FPGA platform. The MIL STD 1553 Synthesizable Transactor is compliant with MIL STD 1553B specification and verifies MIL STD 1553 interfaces. It includes an extensive test suite covering most of the possible scenarios. It performs all possible protocol tests in a directed or a highly randomized fashion which adds the possibility to create most wide range of scenarios to verify the DUT effectively.
- Features
-
- Compliant with MIL STD 1553B Standard
- Supports Remote terminal, Bus Controller
- Supports configurable length of word length, default 20 bits
- Supports configurable length of data bits, default 16
- Supports configurable message length per transfer
- Supports NRZ and Manchester encoding
- Supports single or multi bus control
- Supports following message formates
- Controller to terminal
- Terminal to controller
- Terminal to terminal
- Broadcast
- System control
- Supports glitch injection and detection
- Supports upto 31 remote terminals
- Supports all types of errors insertion/detection as given below:
- Sync error
- Parity error
- NRZ or Manchester encoding error
- Glitch injection
- Oversize message error
- Undersize message error
- Driving X onto bus
- Various illegal values errors
- Inter message gap error
- Terminal response time error
- Supports testcases from following standards
- MIL-HDBK-1553 Remote Terminal Validation Test Plan Notice 1
- MIL-HDBK-1553A Remote Terminal Validation Test Plan Section 100
- SAE AS-4111 Remote Terminal Validation Test Plan
- SAE AS-4112 Remote Terminal Production Test Plan
- SAE AS-4113 Bus Controller Validation Test Plan
- SAE AS-4114 Bus Controller Production Test Plan
- SAE AS-4116 Bus Monitor Test Plan
- Supports on-the-fly protocol and data checking
- Benefits
-
- Compatible with testbench writing using SmartDV's VIP
- All UVM sequences/testcases written with VIP can be reused
- Runs in every major emulators environment
- Runs in custom FPGA platforms

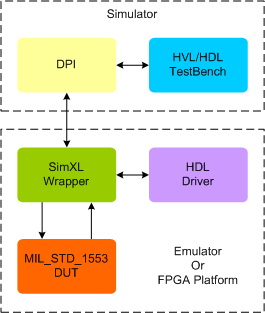

- MIL STD 1553 Synthesizable Env
-
SmartDV's MIL STD 1553 Synthesizable env contains following:
- Synthesizable transactors
- Complete regression suite containing all the MIL STD 1553 testcases
- Examples showing how to connect various components, and usage of Synthesizable Transactor
- Detailed documentation of all DPI, class, task and functions used in verification env
- Documentation contains User's Guide and Release notes
