DALI Synthesizable Transactor

DALI Synthesizable Transactor

DALI Synthesizable Transactor provides a smart way to verify the DALI component of a SOC or a ASIC in Emulator or FPGA platform. The SmartDV's DALI Synthesizable Transactor is fully compliant with standard DALI Specification and provides the following features.

Features
  • Fully compatible with IEC 62386-101 Edition 2.0 2014-11 and IEC 62386-102 Edition 2.0 2014-11 Specifications
  • Supports complete DALI Tx/Rx functionality
  • Supports fully configurable serial interface
  • Supports programmable clock frequency of operation
  • Supports configurable baud rate
  • Supports two types of frame formats
    • 16-Bit Forward Frame
    • 20-Bit Reserved Forward Frame
    • 24-Bit Forward Frame
    • 32-Bit Reserved Forward Frame
    • Backward frame
  • Supports different Device addressing method
    • Short address
    • Group address
    • Broadcast unaddress
    • Broadcast address
    • Special command address
    • Reserved address
  • Supports direct arc power control (DAPC) command
  • Supports manchester encoding/decoding technique
  • Supports collision avoidance, collision detection and collision recovery
  • Supports all types of error insertion and detection
    • Start bit error
    • Stop bit errors
    • Response Timeout error
    • Manchester Encoding errors
    • Bi-phase Encoding errors
    • Framing errors
  • Supports Glitch insertion and detection
  • DALI VIP comes with complete testsuite to test every feature of DALI specification
Benefits
  • Compatible with testbench writing using SmartDV's VIP
  • All UVM sequences/testcases written with VIP can be reused
  • Runs in every major emulators environment
  • Runs in custom FPGA platforms

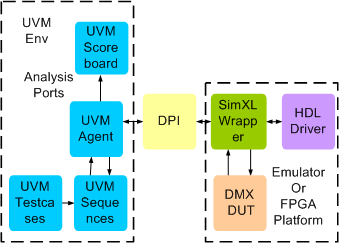

DALI Synthesizable Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's DALI Synthesizable env contains following:

  • Synthesizable transactors
  • Complete regression suite containing all the DALI testcases
  • Examples showing how to connect and usage of Synthesizable Transactor
  • Detailed documentation of all DPI, class, task and functions used in verification env
  • Documentation also contains User's Guide and Release notes
