Wide Range VCC Flash Memory Model provides an smart way to verify the Wide Range VCC Flash component of a SOC or a ASIC. The SmartDV's Wide Range VCC Flash memory model is fully compliant with standard Wide Range VCC Flash Specification and provides the following features. Better than Denali Memory Models.
Wide Range VCC Flash Memory Model is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
Wide Range VCC Flash Memory Model comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Supports Wide Range VCC Flash memory devices like MX25R3235F, MX25R1635F, MX25R6435 from all leading vendors
- Supports 100% of Wide Range VCC Flash protocol standards.
- Supports all the Wide Range VCC Flash commands as per the specs.
- Supports Serial Peripheral Interface - Mode 0 and Mode 3
- Supports software reset.
- Supports Additional 8K bits secured OTP
- Features unique identifier.
- Factory locked identifiable and customer lockable
- Supports Auto Erase and Auto Program Algorithm
- Supports Status Register Feature
- Supports Command Reset
- Supports Program/Erase Suspend and Program/Erase Resume
- Supports Electronic Identification and unique ID
- Support Serial Flash Discoverable Parameters (SFDP) mode
- Supports Data protection
- Supports all types of timing and protocol violation detection
- Constantly monitors Wide Range VCC Flash behavior during simulation.
- Protocol checker fully compliant with Wide Range VCC Flash Specification.
- Models, detects and notifies the test bench of significant events such as transactions, warnings, timing and protocol violations
- Built in functional coverage analysis.
- Supports Callbacks, so that user can access the data observed by monitor.
- Benefits
-
- Faster testbench development and more complete verification of Wide Range VCC Flash designs.
- Easy to use command interface simplifies monitor control and configuration.
- Simplifies results analysis.
- Runs in every major simulation environment.

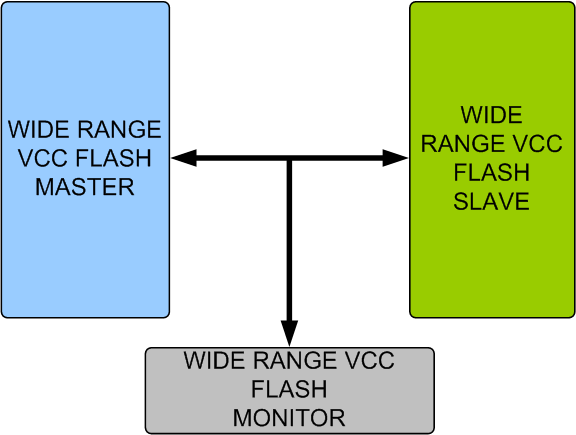

- Wide Range VCC Flash Verification Env
-
SmartDV's Wide Range VCC Flash Verification env contains following.
- Complete regression suite containing all the Wide Range VCC Flash testcases.
- Examples showing how to connect and usage of Model.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
