ONFI (Open Nand Flash Interface) provides an smart way to verify the ONFI host controller or ONFI Flash memory model of a SOC or a ASIC. The SmartDV's ONFI is fully compliant with standard ONFI Specification and provides the following features.
Open Nand Flash Interface (ONFI) is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
Open Nand Flash Interface (ONFI) comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Compliant with ONFI 2.3/3.0/4.0/4.1/5.0 specifications.
- Supports Source Synchronous and Asynchronous data interfaces.
- Supports all mandatory and optional commands.
- Supports 16 bit bus width operations.
- Supports Read ID commands.
- Supports Synchronous reset commands.
- Supports Interleaved/ Multi-plane commands.
- Supports Multiple LUN Operation.
- Supports Reset LUN commands.
- Supports Get features and Set features commands.
- Supports Implicit DCC Training commands.
- Supports Read DQ Training commands.
- Supports Write TX DQ Training Pattern commands.
- Supports Write TX DQ Training Read back commands.
- Supports Write RX DQ Training commands.
- Configurable timing modes for all data interface.
- Supports Partial Page programming and copy back programming.
- Source Synchronous data interface supports Clock Stop feature.
- Supports dual data bus.
- Supports Data Bus Inversion(DBI).
- Supports Small Data Move command for both Program and Copyback operations.
- Ability to generate Vendor Specific Commands and Block Abstracted NAND Commands.
- Rich set of configuration parameters to control ONFI functionality.
- Supports constrained randomization of protocol attributes.
- On-the-fly protocol and data checking.
- Supports SDR, DDR, NV-DDR2, NV-DDR3, NV-LPDDR4 data interface.
- Supports Volume select commands.
- Detects and reports the following errors.
- Page address error
- CRC error
- Command not support error
- Illegal command error
- Synchronous reset error
- Read ID error
- Reset LUN error
- Read cache error
- Read UID error
- Lun address change error
- Copyback program error
- Change row address error
- Read status enhanced error
- Interleave page address error
- Protocol checker fully compliant with ONFI Specification with versions 2.3/3.0/4.0/4.1/5.0.
- Status counters for various events on bus.
- Callbacks in host, slave and monitor for user processing of data.
- ONFI Verification IP comes with complete testsuite to test every feature of ONFI specification.
- Models, detects and notifies the test bench of significant events such as transactions, warnings, timing and protocol violations.
- Built in functional coverage analysis.
- Supports Callbacks, so that user can access the data observed by monitor.
- Benefits
-
- Faster testbench development and more complete verification of ONFI designs.
- Easy to use command interface simplifies testbench control and configuration of Host and Slave.
- Simplifies results analysis.
- Runs in every major simulation environment.
- ONFI Verification Env
-
SmartDV's ONFI Verification env contains following.
- Complete regression suite containing all the ONFI testcases.

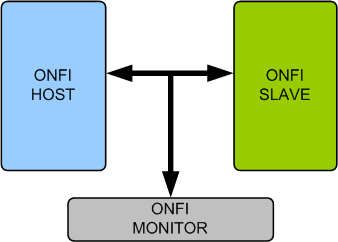

- Examples showing how to connect various components, and usage of Host, Slave and Monitor.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation contains User's Guide and Release notes.
