NAND Flash Memory Model provides an smart way to verify the NAND Flash component of a SOC or a ASIC. The SmartDV's NAND Flash memory model is fully compliant with standard NAND Flash Specification and provides the following features. Better than Denali Memory Models.
NAND Flash Memory Model is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
NAND Flash Memory Model comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Supports NAND Flash memory devices from all leading vendors.
- Supports 100% of NAND FLASH protocol standard of HY27UH08AG(5/D)M.
- Supports all the NAND FLASH commands as per the specs.
- Provides cost effective solutions for mass storage applications.
- Supports NAND interface of x8 width.
- Supports multiplexed Address/Data.
- Supports memory cell array of (2K+64) Bytes *64 Pages*16,384 Blocks.
- Supports page size of (2K + 64 spare) Bytes for x8 device.
- Supports Block size of (128K + 4K spare) Bytes for x8 device.
- Supports page read/program.
- Supports Copy back program mode for fast page copy without external buffering.
- Supports cache program mode to improve the program throughput.
- Supports Fast block erase time of 2ms.
- Supports status register.
- Supports Electronic signature.
- Supports Chip enable don’t care.
- Supports Hardware data protection.
- Supports Data integrity of 100,000 program/erase cycles.
- Notifies the test bench of significant events such as transactions, warnings, timing and protocol violations.
- Constantly monitors NAND FLASH behavior during simulation.
- Protocol checker fully compliant with NAND FLASH Specification HY27UH08AG(5/D).
- Models, detects and notifies the test bench of significant events such as transactions, warnings, timing and protocol violations.
- Built in functional coverage analysis.
- Supports Callbacks, so that user can access the data observed by monitor.
- Benefits
-
- Faster testbench development and more complete verification of NAND Flash designs.
- Easy to use command interface simplifies monitor control and configuration.
- Simplifies results analysis.
- Runs in every major simulation environment.
- NAND Flash Verification Env
-

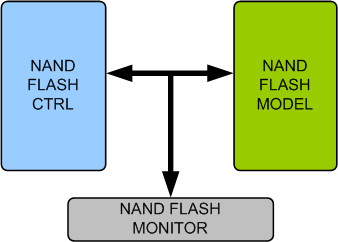

SmartDV's NAND Flash Verification env contains following.
- Complete regression suite containing all the NAND Flash testcases.
- Examples showing how to connect and usage of Model.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
