GDDR7 Memory Model provides an smart way to verify the GDDR7 component of a SOC or a ASIC. The SmartDV's GDDR7 memory model is fully compliant with draft GDDR7 JEDEC Specification and provides the following features. Better than Denali Memory Models.
GDDR7 Memory Model is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
GDDR7 Memory Model comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Supports GDDR7 memory devices from all leading vendors.
- Supports 100% of GDDR7 protocol draft JEDEC specification.
- Supports all the GDDR7 commands as per the specs.
- Supports 4 separate independent channels with point-to-point interface for data, address and command.
- Supports command parity
- Supports Double Data Rate (DDR)
- Supports Pseudo channel mode operation.
- Supports 16 - 64 Gbit densities
- Supports X8 mode.
- Supports RDQS Mode.
- Supports DQ preamble.
- Supports Bank group features.
- Supports Programmable Read/Write latency.
- Supports Bank grouping and 16 internal banks per channel.
- Supports Data bus inversion (DBI) & Command Address bus inversion (CABI).
- Supports Read/Write data transmission integrity secured by cyclic redundancy check.
- Supports ECC.
- Supports Input/output PLL/DLL on/off mode.
- Supports Read/Write EDC on/off mode.
- Supports Programmable EDC hold pattern for CDR.
- Supports Programmable CRC Read/Write latency.
- Supports Low Power modes.
- Supports Auto refresh & self-refresh modes.
- Supports On-die termination operation.
- Supports Command Address, WCK2CK, Read and Write Training mode’s.
- Supports IEEE.1149.1 boundary scan operation.
- Checks for following
- Check-points include power on, Initialization and power off rules,
- State based rules, Active Command rules,
- Read/Write Command rules etc.
- All timing violations.
- Supports callbacks for user to get command data on bus.
- Supports all mode registers programming.
- Supports for power down features.
- Supports for input clock stop and frequency change.
- Quickly validates the implementation of the draft GDDR7 protocol JEDEC specification.
- Bus-accurate timing for min, max and typical values.
- Constantly monitors GDDR7 behavior during simulation.
- Protocol checker fully compliant with GDDR7 draft JEDEC specification.
- Notifies the test bench of significant events such as transactions, warnings, timing and protocol violations.
- Built in functional coverage analysis.
- Supports Callbacks, so that user can access the data observed by monitor.
- Benefits
-
- Faster testbench development and more complete verification of GDDR7 designs.
- Easy to use command interface simplifies monitor control and configuration.
- Simplifies results analysis.
- Runs in every major simulation environment.

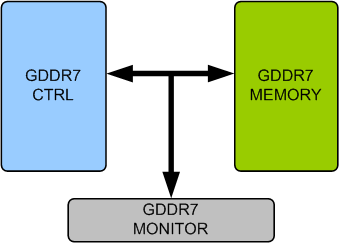

- GDDR7 Verification Env
-
SmartDV's GDDR7 Verification env contains following.
- Complete regression suite containing all the GDDR7 testcases.
- Examples showing how to connect and usage of Model.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
