DDR5 DFI Verification IP provides an smart way to verify the DDR5 DFI component of a SOC or a ASIC. The SmartDV's DDR5 DFI Verification IP is fully compliant with standard DFI Specification and provides the following features.
DDR5 DFI Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
DDR5 DFI Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Compliant with DFI 5.0 Specification.
- DFI-DDR5 Applies to :
- DDR5 protocol standard JESD79-5 & JESD79-5 Rev1.40 (Draft) Specifications
- Supports all Interface Groups.
- Supports Write Transactions with Data mask/Write DBI.
- Supports Write Transactions with data CRC
- Supports Read Transactions with CRC.
- Supports DRAM Clock disabling feature.
- Supports Data bit enable/disable feature.
- Supports 1:1, 1:2 and 1:4 MC to PHY frequency ratio.
- Supports frequency change protocol.
- Supports Low power control features.
- Supports Error signaling.
- Supports DFI Read/Write Chip Select.
- Supports 3DS Stack.
- Supports Inactive CS.
- Supports all types of timing and protocol violations detection for timing parameters like tphy_wrlat ,tphy_wrdata,trd_dataen and tphy_rdlat delays

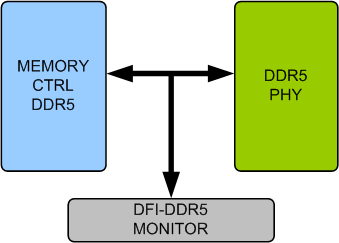

- Constantly monitors DFI behavior during simulation.
- Protocol checker fully compliant with DFI 5.0 Specification
- Bus-accurate timing for min, max and typical values.
- Notifies the test bench of significant events such as transactions, warnings
- Built in functional coverage analysis.
- Supports callbacks, so that user can access the data observed by monitor.
- Benefits
-
- Faster test bench development and more complete verification of DDR5 DFI designs.
- Easy to use command interface simplifies monitor control and configuration.
- Simplifies results analysis.
- Runs in every major simulation environment.
- DDR5 DFI Verification Env
-
SmartDV's DDR5 DFI Verification env contains following.
- Complete regression suite containing all the DDR5 DFI testcases.
- Complete UVM/OVM sequence library for DDR5 DFI controller.
- Examples showing how to connect and usage of Model.
- Detailed documentation of all classes, tasks and functions used in verification env.
- Documentation also contains User's Guide and Release notes.
