DDR3L Memory Model provides an smart way to verify the DDR3L component of a SOC or a ASIC. The SmartDV's DDR3L memory model is fully compliant with standard DDR3L Specification and provides the following features. Better than Denali Memory Models.
DDR3L Memory Model is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
DDR3L Memory Model comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Supports DDR3L memory devices from all leading vendors.
- Supports 100% of DDR3L protocol standard 8Gb_DDR3L.pdf.
- Supports all the DDR3L commands as per the specs.
- Supports up to 8 GB device density.
- Supports 8 internal banks.
- Supports the following devices.
- Supports all speed grades as per specification.
- Quickly validates the implementation of the DDR3L standard 8Gb_DDR3L.pdf.
- Supports Programmable Write latency and Read latency.
- Supports On-the-fly for burst length.
- Supports Programmable burst lengths: 4,8.
- Supports the following burst order.
- Checks for following
- Check-points include power up, initialization and power off rules
- State based rules, Active Command rules
- Read/Write Command rules etc.,
- All timing violations
- Supports for All Mode register programming.
- Supports for Write data Mask.
- Supports for Power Down features.
- Supports for input clock stop and frequency change.
- Supports for DLL.
- Supports for Write leveling.
- Supports for Output driver Calibration.
- Supports for automatic self refresh(ASR).
- Supports for self refresh mode.
- Supports for Self Refresh Temperature (SRT).
- Supports for Multipurpose Register.
- Supports for Nominal and dynamic ODT (On-Die Termination) for data, strobe and mask signals.
- Supports for full-timing as well as behavioral versions in one model.
- Supports for all timing delay ranges in one model: min, typical and max.
- Protocol checker fully compliant with DDR3L Specification 8Gb_DDR3L.pdf.
- Models, detects and notifies the test bench of significant events such as transactions, warnings, and timing and protocol violations.
- Constantly monitors DDR3L behavior during simulation.
- Built in functional coverage analysis.
- Supports Callbacks, so that user can access the data observed by monitor.
- Benefits
-
- Faster testbench development and more complete verification of DDR3L designs.
- Easy to use command interface simplifies monitor control and configuration.
- Simplifies results analysis.
- Runs in every major simulation environment.

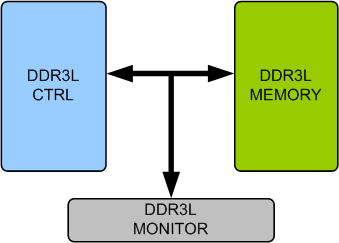

- DDR3L Verification Env
-
SmartDV's DDR3L Verification env contains following.
- Complete regression suite containing all the DDR3L testcases.
- Examples showing how to connect and usage of Model.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
