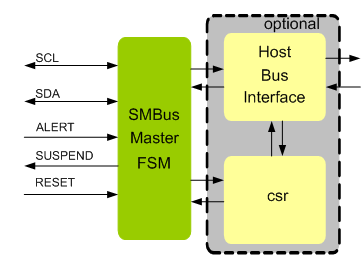

SMBUS Master interface provides full support for the two-wire SMBUS Master synchronous serial interface, compatible with SMBUS version 3.1 specification. Through its SMBUS Master compatibility, it provides a simple interface to a wide range of low-cost devices. SMBUS Master IIP is proven in FPGA environment. The host interface of the SMBUS Master can be simple interface or can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.
SMBUS Master IIP is supported natively in Verilog and VHDL
- Features
-
- Compliant with SMBus version 3.1 specification
- Supports HCI and Non HCI Interface
- Full SMBus Master Functionality
- Supports command code Protocols
- Write Byte/Word
- Read Byte/Word
- Process Call
- Block Write/Read
- Block Write-Block Read Process Call
- Write 32 Protocol
- Read 32 Protocol
- Write 64 Protocol
- Read 64 Protocol
- Supports Non command code Protocols
- Quick Command Protocol
- Send Byte Protocol
- Receive Byte Protocol
- Supports Address Resolution Protocol
- Supports SMBAlert signal and SMBsus signal
- Supports Packet Error Checking
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to microprocessor/microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's SMBUS Master IP contains following
- The SMBUS Master interface is available in Source and netlist products.
- The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
