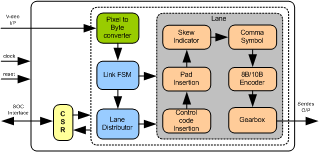

SLVS-EC Transmitter core is compliant with standard SLVS_EC specification as 2.0. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. SLVS-EC Transmitter IIP is proven in FPGA environment.The host interface of the SLVS-EC can be AHB, AHB-Lite, APB, AXI, AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or custom buses.
SLVS-EC TRANSMITTER IIP is supported natively in Verilog and VHDL
- Features
-
- Compliant with SLVS-EC specification 2.0.
- Full SLVS-EC transmit functionality.
- Supports the following system topologies between CIS and DSP
- Basic Topology
- Multiple I/F Topology
- Multiple CIS Topology
- Supports the following frame synchronization schemes.
- CIS Master with shared clock
- CIS Master without shared clock
- Supports the following Baud Grades,
- Baud Grade 1 with Baud Rates of 1152 to 1250 Mbps
- Baud Grade 2 with Baud Rates of 2304 to 2500 Mbps
- Baud Grade 3 with Baud Rates of 4608 to 5000 Mbps
- Supports lanes upto 8 lanes(1,2,4,6,8 lanes).
- Supports the following color formats.
- RAW 8
- RAW 10
- RAW 12
- RAW 14
- RAW 16
- Supports Embedded data transfer.
- Supports Multiple stream transfer.
- Supports LINK Protocol Management.
- Supports PHY Protocol Management.
- Supports 8B10B Encoding .
- Supports Error Correction Code(ECC).
- Supports Cyclic Redundancy Check(CRC).
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to microprocessor/microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's SLVS-EC Transmitter IP contains following
- The SLVS-EC Transmitter interface is available in Source and netlist products.
- The Source product is delivered in plain text verilog. If needed VHDL,SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
