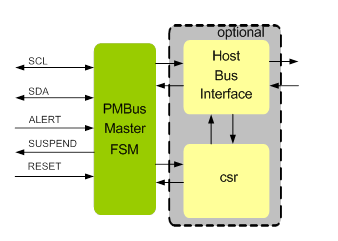

PMBUS Master interface provides full support for the two-wire PMBUS Master synchronous serial interface, compatible with version 1.3.1 Part II of PMBus Bus Specification. Through its PMBUS Master compatibility, it provides a simple interface to a wide range of low-cost devices. PMBUS Master IIP is proven in FPGA environment. The host interface of the PMBUS Master can be simple interface or can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.
PMBUS Master IIP is supported natively in Verilog and VHDL
- Features
-
- Compliant with version 1.3.1 Part II of PMBus Bus Specification
- Supports HCI and Non HCI Interface
- Full PMBus Master Functionality
- Supports all the PMBus commands as per Specification
- Send byte command
- Write byte command
- Write word command
- Read byte command
- Read word command
- Block write command
- Block read command
- Block write and read process call command
- Supports Extended command protocol
- Supports Zone write and Zone read
- Supports General call address
- Supports Sending command to a group
- Supports PMBus device fault management
- Supports Packet Error checking
- Supports alert handling
- Supports Master arbitration and Clock synchronization
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to microprocessor/microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's PMBUS Master IP contains following
- The PMBUS Master interface is available in Source and netlist products.
- The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
