MIPI UniPro IIP

MIPI UniPro IIP

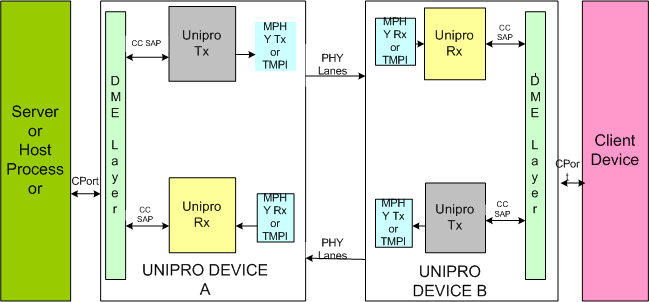

MIPI UNIPRO compatible with MIPI UNIPRO version 1.8 and 2.0 specification. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. MIPI UNIPRO IIP is proven in FPGA environment. The host interface of the MIPI UNIPRO can be simple interface or can be AHB,AHB-Lite,APB,AXI,AXI-Lite,Tilelink,OCP,VCI,Avalon,PLB,Wishbone or Custom protocol.

MIPI UniPro IIP is supported natively in Verilog and VHDL

Features
  • Compliant with MIPI UNIPRO specification version 1.6,1.8 and 2.0
  • Supports MIPI M-PHY specification 3.0 ,4.1 and 5.0
  • Supports multiple connections in L4 Layer and L4 segments
  • Supports M-PHY HS data rates HS-Gear1 – Gear5, both A/B modes and PWM
  • data rates PWM-G1 to PWM-G7. In Unipro 2.0 and MPHY 5.0, supports PWM-G1 gear.
  • Supports CPort arbitration at both segment level and packet level
  • Supports L2 data frames and control frames
  • Supports up to two M-PHY lanes for UFS application
  • Supports M-PHY RMMI (10,20,40 and 80) Interface in PHY layer
  • Supports all power modes for M-PHY in PHY layer
  • Supports all types of lane mapping (Lane 0 mapped to 1 etc)
  • Supports link startup as per specs.
  • Supports maximum of 32 C-Ports
  • Employs round robin arbitration across C-Ports
  • Supports group acknowledgement of maximum 16 frames per traffic class
  • Supports retransmission of frames
  • Configurable buffer spaces
  • Supports CSD, CSV
  • Supports UniPro test feature
  • TMPI support
  • Supports CPort buffer based E2E checking
  • Supports Scrambling as per specs
  • Supports complete DME functionality
  • Supports interrupt handling for the status of data transfer and error detection in the various layers of Unipro
  • Supports below latest 2.0 Version features:
  • - In Unipro 2.0 version, Linkstartup sequence start either HS Mode(HS G1A or HS G1B) or LS mode(PWM G1)
  • - Supports PA capability user data in PACP CAP IND frame
  • - Supports L2 buffer extension
  • - Supports Extended save time
  • - Supports HS-G5 Gear in HS Mode
  • - Supports RMMI bus width extended to 80bits per lane interface in PHY Layer
  • Supports PHY layer features:
  • - Transmission and reception of encoded PHY symbols.
  • - Transmission of PHY IDLE symbols when no data is supplied.
  • - Detection of PHY IDLE symbols.
  • - Method to re-initialize the forward Link to overcome error situations.
  • - Provision of different power modes and a method to signal them from transmitter to receiver.
  • Supports PHY adapter layer features:
  • - Transmission and reception of Data Link layer control symbols and data symbols via underlying PHY
  • - Lane distribution and merging in multi-lane ports
  • - Provision of MIPI UniPro power management operating modes
  • - Re-Initialization of the PHY TX path
  • - Transmit lane connect/disconnect features
  • - One lane mapping to different lanes
  • Supports Data Link layer features:
  • - Frame composition and frame decomposition
  • - Buffering Mechanism
  • - Frame preemption
  • - Triggering of PHY initialization
  • - Two traffic classes by priority-based arbitration
  • - Detect various protocol errors
  • Supports Network layer features:
  • - Packet composition and packet decomposition
  • - Packet format recognition
  • - Traffic Class
  • - Error handling
  • Supports Transport layer features:
  • - Segmentation and Reassembly
  • - Segment Composition and segment decomposition
  • - Segment format recognition
  • - Connections management
  • - End-to-End flow-control
  • - Error handling
  • - Different CPort arbitration algorithms supported
Benefits
  • Single Site license option is provided to companies designing in a single site.
  • Multi Sites license option is provided to companies designing in multiple sites.
  • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
  • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
Deliverables

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's MIPI UNIPRO IP contains following

  • The MIPI UNIPRO interface is available in Source and netlist products.
  • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
  • Easy to use Verilog Test Environment with Verilog Testcases.
  • Lint, CDC, Synthesis and Simulation Scripts with waiver files.
  • IP-XACT RDL generated address map.
  • Firmware code and Linux driver package.
  • Documentation contains User's Guide and Release notes.
