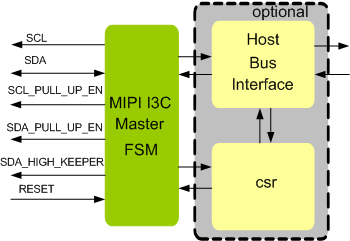

MIPI I3C Master interface provides full support for the two-wire MIPI I3C synchronous serial interface, compatible with MIPI I3C version 1.1 and MIPI I3C HCI version 1.1 specifications. Through its MIPI I3C compatibility, it provides a simple interface to a wide range of low-cost devices. MIPI I3C Master IIP is proven in FPGA environment. The host interface of the MIPI I3C Master can be simple interface or can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.
MIPI I3C Master IIP is supported natively in Verilog and VHDL
- Features
-
- Compliant with MIPI I3C version 1.1 and I3C HCI version 1.1 specifications.
- Compliant with JEDEC Module Sideband Bus version 1.0 specification.
- Non HCI Version is also supported for designs which are gate count sensitive.
- Full MIPI I3C Master Functionality.
- Two wire serial interface up to 12.5 MHz using Push-Pull with the following Data rates supported:
- Supports all topologies
- Single Master – Multi Slave
- Single Master – Single Slave
- Multi Master – Multi Slave
- Multi Master – Single Slave
- Dynamic Addressing while supporting Static Addressing for legacy I2C devices.
- Supports Master Pull up structures.
- Supports I3C address arbitration optimization.
- Supports Predictive addressing scheme
- Supports Direct commands
- Supports Direct command CCC framing
- Supports Single Data Rate (SDR) messaging.
- SDR with Direct CCC
- SDR with Broadcast CCC
- Supports High Data Rate (HDR) messaging
- HDR-Dual Data Rate Mode (HDR-DDR)
- HDR-Ternary symbol for Pure bus (HDR-TSP)
- HDR-Ternary symbol Legacy inclusive bus (HDR-TSL)
- In-Band Interrupt support and Hot-Join support
- Legacy I2C Device co-existence on the same Bus instance
- DMA interface support (DMA Mode)
- Single transfer descriptor defines Command and Data
- Single response status descriptor reports status of the transfer
- Linked descriptor support (Multicast messaging support)
- Auto-Reject for In-Band Interrupt and Hot-Join (NACK and directed DISEC CCC to disable)
- DMA Mode with Command Rings, to enable clean Doorbell mechanisms
- Multiple Command/Response Rings and IBI Rings, including IBI payload
- Supports for interrupt masking
- Supports JEDEC specific CCC transfers
- Supports Packet Error code (PEC) for JEDEC specific transfers
- Fully synthesizable.
- Static synchronous design.
- Positive edge clocking and no internal tri-states.
- Scan test ready.
- Simple interface allows easy connection to microprocessor/microcontroller devices.
- Benefits
-
- Single Site license option is provided to companies designing in a single site.
- Multi Sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's MIPI I3C Master IP contains following
- The MIPI I3C Master interface is available in Source and netlist products.
- The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
