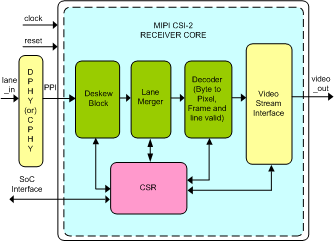

MIPI CSI-2 Receiver interface provides full support for the two-wire MIPI CSI2 serial interface, compatible with MIPI CSI-2 Specification version 2.1. It is typically residing in an image application processor and provides communication to MIPI CSI-2 transmitter in a camera module over the serial PHY link. MIPI CSI-2 Receiver IIP is fully configurable and proven in FPGA environment. The host interface of the MIPI CSI-2 Receiver IP can be simple interface or can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.
MIPI CSI-2 Receiver IIP is supported natively in Verilog and VHDL
- Features
-
- Compliant with MIPI CSI-2 Specification v1.0, v1.1, v1.3, v2.0,v2.1
- Compliant with D - PHY Specification v1.1,v1.2,v2.0,v2.1
- Compliant with C - PHY Specification v0.7,v1.2,v2.0
- Full MIPI CSI-2 RX functionality where either D - PHY / C - PHY can be used
- Supports Multi lane merging and also lanes can be configured up to 4 lanes for C - PHY and 8 lanes for D – PHY
- Supports Data rate up to 4.5 Gbps per data lane of D – PHY. 36 Gbps in 8 Lanes
- Supports Data rate up to 3 Gsps per trio using C – PHY. 17 Gbps in 3 Trios
- Supports up to 4 Virtual channels
- Supports continuous and non-continuous clock modes
- Supports PPI Interface to connect to C - PHY / D - PHY
- Supports short and long packets.
- Supports Frame and Line Synchronization Packets (Short Packets)
- Supports Data Descrambling in Lanes
- Supports Deskew mechanism for Lane synchronization.
- Supports High Speed and Escape Mode (LPDT and ULPS) reception
- Supports the following interleaving methods
- Data type
- Virtual channel
- Supports 1-bit Error Correction and 2-bit Error Detection using ECC (6 bit) for Packet Header.
- Supports Error Detection techniques for active data using Checksum (16 bit).
- Supports 16 interleaved Virtual channel in D-PHY and 32 in C-PHY
- Support all Protocol Decoding Level errors
- Supports the compression for RAW data types
- Supports Error Detection techniques for active data using Checksum (16 bit)
- Supports Image applications with varying Pixel format
- RAW Data Type - RAW6, RAW7, RAW8, RAW10, RAW12, RAW14, RAW16, RAW20, RAW24
- RGB Data Type - RGB444, RGB555, RGB565, RGB888, RGB 666
- YUV Data Type - YUV422-8bit, YUV422-10bit, YUV420-8bit, YUV420-10bit, Legacy YUV420-8bit
- User defined data type - 8 data types
- Generic 8 bit long packet (Null, Blanking, Embedded data)
- Supports Pixel Level /interface to ISP with HSYNC, VSYNC, DATA and DATA VALID
- Supports Latency Reduction and Transport Efficiency (LRTE)
- Supports Alternate Low Power (ALP) mode
- Supports Alternate Skew Calibration
- Programmable synchronization and interrupt (error and information) events
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to microprocessor/microcontroller devices
- Benefits
-
- Single Site license option is provided to companies designing in a single site.
- Multi Sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's MIPI CSI-2 Receiver IP contains following.
- The MIPI CSI-2 Receiver interface is available in Source and netlist products
- The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes
