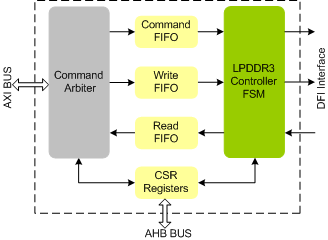

LPDDR3 interface provides full support for the LPDDR3 interface, compatible with JESD209-3,JESD209-3B and JESD209-3C specification and DFI-version 3.1 or higher specification Compliant. Through its LPDDR3 compatibility, it provides a simple interface to a wide range of low-cost devices. LPDDR3 IIP is proven in FPGA environment. The host interface of the LPDDR3 can be simple interface or can be AMBA AHB, AMBA AHB-Lite, AMBA APB, AMBA AXI, AMBA AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or Custom protocol.
LPDDR3 Controller IIP is supported natively in Verilog and VHDL
- Features
-
- Supports 100% of LPDDR3 protocol standard JESD209-3, JESD209-3B and JESD209-3C.
- Compliant with DFI version 3.1 or higher Specification.
- Supports all the LPDDR3 commands as per the specs.
- Supports up to 16 AXI ports with data width upto 512 bits.
- Supports controllable outstanding transactions for AXI write and read channels
- Supports in port arbitration and multi port arbitration.
- Supports user programmable page policy.
- Closed page policy
- Open page policy
- Supports Error Checking and correction (ECC).
- Supports retry on ECC error, with retry limit user controllable.
- Supports high clock speeds in ASIC and FPGA.
- Supports low latency for write and read path.
- Supports reordering of transactions for higher performance.
- Supports up to 32GB device density
- Supports X16 and X32 devices.
- Supports all data rates as per specification.
- Supports for Programmable READ/WRITE Latency timings.
- Supports for Burst sequence.
- Supports for All Mode register programming.
- Supports for write data mask and data strobe features.
- Supports for Power Down features.
- Supports for Deep Power Down features.
- Supports for Write leveling.
- Supports for ZQ calibration.
- Supports for CA training and DQ calibration.
- Supports for ODT (On-Die Termination features).
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to Microprocessor/Microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's LPDDR3 IP contains following
- The LPDDR3 interface is available in Source and netlist products.
- The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases.
- Lint, CDC, Synthesis, Simulation Scripts with waiver files.
- IP-XACT RDL generated address map.
- Firmware code and Linux driver package.
- Documentation contains User's Guide and Release notes.
