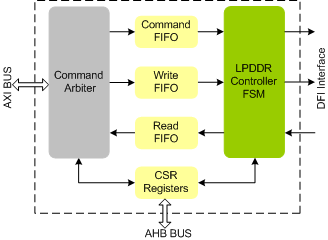

LPDDR is full-featured, easy-to-use, synthesizable design, compatible with JESD209A-1 and JESD209B specification and DFI-version 2.0 or higher specification Compliant. Through its LPDDR compatibility, it provides a simple interface to a wide range of low-cost devices. LPDDR IIP is proven in FPGA environment. The host interface of the LPDDR can be simple interface or can be AMBA AHB, AMBA AHB-Lite, AMBA APB, AMBA AXI, AMBA AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or Custom protocol.
LPDDR Controller IIP is supported natively in Verilog and VHDL
- Features
-
- Supports LPDDR protocol standard and JESD209A-1 and JESD209B Specification
- Compliant with DFI version 2.0 or higher Specification.
- Supports up to 16 AXI ports with data width upto 512 bits.
- Supports controllable outstanding transcations for AXI write and read channels
- Supports in port arbitration and multi port arbitration.
- Supports user programmable page policy.
- Closed page policy
- Open page policy
- Supports Error Checking and correction (ECC).
- Supports retry on ECC error, with retry limit user controllable.
- Supports high clock speeds in ASIC and FPGA.
- Supports low latency for write and read path.
- Supports reordering of transcations for higher performance.
- Supports up to 2GB device density
- Supports X32 and X16 devices
- Supports all speed grades as per specification
- Supports programmable CAS latency
- Supports programmable burst length: 2, 4, 8 and 16
- Supports Mode registers/Control programming
- Supports extended mode register programming
- Supports burst type: Sequential and Interleave
- Supports burst order
- Supports write data mask
- Supports power down features
- Supports deep power down features
- Supports auto precharge option for each burst access
- Supports auto refresh and self refresh modes
- Supports Multiple Outstanding transaction
- Supports In-port Arbitration using QoS
- Supports 2:1 and 4:1 Clock Ratio Modes
- Supports CRC and ECC for Write and Read Operations
- Supports 1:4 Controller to DFI PHY frequency ratio
- Supports Programmable clock frequency operation
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to Microprocessor/Microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's LPDDR IP contains following
- The LPDDR interface is available in Source and netlist products.
- The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases.
- Lint, CDC, Synthesis, Simulation Scripts with waiver files.
- IP-XACT RDL generated address map.
- Firmware code and Linux driver package.
- Documentation contains User's Guide and Release notes.
