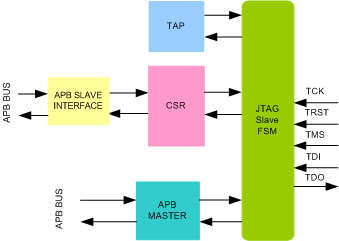

JTAG Slave To APB Bridge interface provides full support for the two-wire JTAG synchronous serial interface, compatible with Jtag protocol standard IEEE 1149.1 and IEEE 1149.6. Through its JTAG compatibility, it provides a simple interface to a wide range of low-cost devices. JTAG Slave To APB Bridge IIP is proven in FPGA environment.The host interface of the JTAG can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.
JTAG Slave To APB Bridge IIP is supported natively in Verilog and VHDL
- Features
-
- Supports Jtag protocol standard IEEE 1149.1 and IEEE 1149.6
- Supports all the JTAG tap instructions.
- Supports programmable clock frequency of operation.
- Supports Instruction register and data register of various sizes.
- Converts JTAG into APB write and read to access APB bus
- Fully synthesizable.
- Static synchronous design.
- Positive edge clocking and no internal tri-states.
- Scan test ready.
- Simple interface allows easy connection to microprocessor/microcontroller devices.
- Benefits
-
- Single Site license option is provided to companies designing in a single site.
- Multi Sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's JTAG Slave To APB Bridge IP contains following.
- The JTAG Slave To APB Bridge interface is available in Source and netlist products.
- The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
