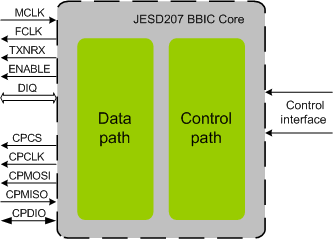

JESD207 BBIC is full-featured, easy-to-use, synthesizable design, compatible with JESD207 Compliant. Through its JESD207 BBIC compatibility,it provides a simple interface to a wide range of low-cost devices. JESD204 BBIC IIP is proven in FPGA environment. The host interface of the JESD207 BBIC can be simple interface or can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.
JESD207 BBIC IIP is supported natively in Verilog and VHDL
- Features
-
- Compliant with JESD207 specification.
- Full JESD207 BBIC functionality.
- Supports half duplex data transfer.
- Supports DDR source synchronous data transfer timing.
- Supports both data path transactions and control plane transactions.
- Supports data path transaction.
- Supports transmit burst and receive burst.
- Supports 12, 14 and 16 bits parallel data width.
- Supports 2 way interleave and 4 way interleave transactions.
- Supports 1T1R, 1T2R, 2T2R systems.
- Supports to transmit and receive multiple parallel sample streams in data path interface
- Supports control plane transaction.
- Supports 4 wires write and 4 wires read.
- Supports 3 wires write and 3 wires read.
- 1bit command plus 7bit address control field format.
- Serial clock can be stopped between transactions, reducing control plane power consumption to negligible levels.
- Extended data transactions.
- Fully synthesizable.
- Static synchronous design.
- Positive edge clocking and no internal tri-states.
- Scan test ready.
- Simple interface allows easy connection to microprocessor/microcontroller devices.
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's JESD207 BBIC IP contains following
- The JESD207 BBIC interface is available in Source and netlist products.
- The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases.
- Lint, CDC, Synthesis, Simulation Scripts with waiver files.
- IP-XACT RDL generated address map.
- Firmware code and Linux driver package.
- Documentation contains User's Guide and Release notes.
