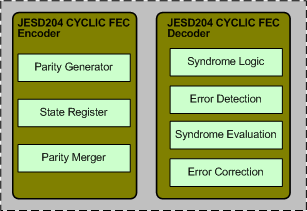

JESD204 CYCLIC FEC core is compliant with JESD204C version specification.Through its compatibility, it provides a simple interface to a wide range of low-cost devices. JESD204 CYCLIC FEC IIP is proven in FPGA environment.The host interface of the JESD204 CYCLIC FEC can be simple interface or can be AHB,AHB-Lite,APB,AXI,AXI-Lite,Tilelink,OCP,VCI,Avalon,PLB,Wishbone or Custom protocol.
JESD204 CYCLIC FEC IIP is supported natively in Verilog and VHDL
- Features
-
- Compliant with JESD204 specification JESD204C.
- Supports Full JESD204C FEC functionality.
- This FEC(Forward Error correction) methodology implements the (2074, 2048) binary cyclic code is shortened from the cyclic Fire code (8687, 8661).
- Supports FEC of 26 bits parity bits.
- Supports Error correct up to 9-bit burst error.
- Supports the pipelined mechanism for the error correction.
- FEC has a minimum latency of 58 blocks in the detection and correction of a bit error in the first scrambled data bit of a multiblock.
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs,license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's JESD204 CYCLIC FEC IP contains following
- The JESD204 CYCLIC FEC interface is available in Source and netlist products.
- The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases.
- Lint, CDC, Synthesis, Simulation Scripts with waiver files.
- IP-XACT RDL generated address map.
- Firmware code and Linux driver package.
- Documentation contains User's Guide and Release notes.
