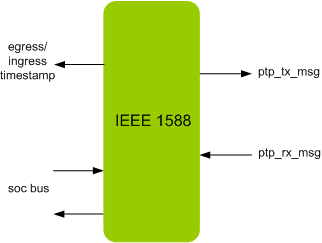

IEEE 1588 core is compliant with IEEE Standard 1588-2019 specification. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. IEEE 1588 IIP is proven in FPGA environment. It can also supports a variety of host bus interfaces for easy adoption into any design architecture - AHB,AHB-Lite,APB,AXI,AXI-Lite,Tilelink,OCP,VCI,Avalon,PLB,Wishbone or custom buses
IEEE 1588 IIP is supported natively in Verilog and VHDL
- Features
-
- Compliant with IEEE Standard 1588-2019 specification
- Supports for TSN required PTP as per IEEE 802.1AS
- Configurable as PTP Master or PTP Slave
- Supports both end to end and peer to peer delay mechanism
- Generates timestamp based on Real time clock (high precision clock)
- Generates Follow up message if it is a 2 step delay mechanism (when configured as Master)
- Generates Delay Response message on reception of Delay Request message (when configured as Master)
- Configurable for Delay Mechanism (End to end or peer to peer)
- Formal mechanisms for message extensions (using TLV)
- Transparent clocks
- Options for redundancy and fault tolerance
- New management capabilities and options
- Optional unicast messaging (in addition to multicast)
- Tight integration with SmartDV Ethernet MAC of all speeds
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to Microprocessor/Microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's IEEE 1588 IP contains following
- The IEEE 1588 interface is available in Source and netlist products.
- The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
