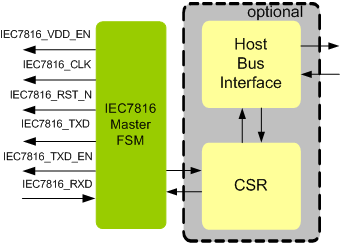

IEC7816 Master interface provides full support for the IEC7816 (SmartCard) synchronous serial interface, compatible with ISO/IEC 7816-3 specification. Through its IEC7816 compatibility, it provides a simple interface to a wide range of low-cost devices. IEC7816 Master IIP is proven in FPGA environment. The host interface of the IEC7816 Master can be simple interface or can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.
IEC7816 Master IIP is supported natively in Verilog and VHDL
- Features
-
- Compliant with ISO/IEC 7816-3 Specification.
- Full IEC7816-3 Master functionality.
- Supports all functions for complete smart card sessions,including
- Card activation and deactivation
- Cold/warm reset
- Answer to Reset (ATR) response reception
- Data transfers to and from the card
- Supports adjustable clock rate and bit (baud) rate.
- Supports configurable automatic byte repetition.
- Supports commonly used communication protocols
- T = 0 for asynchronous half-duplex character transmission, and
- T = 1 for asynchronous half-duplex block transmission
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to microprocessor/microcontroller devices
- Benefits
-
- Single Site license option is provided to companies designing in a single site.
- Multi Sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's IEC7816 Master IP contains following.
- The IEC7816 Master interface is available in Source and netlist products.
- The Source product is delivered in verilog.If needed, VHDL and SystemC can also be provided
- Easy to use Verilog Test Environment with Verilog Testcases.
- Lint, CDC, Synthesis, Simulation Scripts with waiver files.
- IP-XACT RDL generated address map.
- Firmware code and Linux driver package.
- Documentation contains User's Guide and Release notes.
