The HDMI Sink IIP core supports the HDMI 1.4b/2.0b/2.1 specification. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. HDMI Sink IIP is proven in FPGA environment. The host interface of the HDMI can be simple interface or can be AHB, AHB-Lite, APB, AXI, AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or custom buses.
HDMI SINK IIP is supported natively in Verilog and VHDL

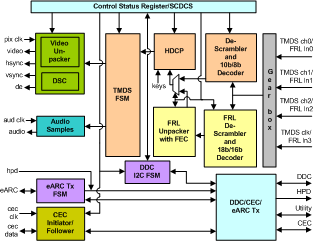

- Features
-
- Compliant with HDMI specification 1.4b/2.0b/2.1.
- Full HDMI Sink functionality.
- Compatible with DVI and Dual-Link DVI Standards.
- Supports 8, 10, 12 and 16 bit pixel output.
- Supports RGB, YCbCr444, YCbCr422 and YCbCr420 Colorimetric Formats.
- Supports 3D video formats and video resolutions of 4Kx2K, 5Kx2K, 8Kx4K, 10Kx4K.
- Supports Decompression of Video Transport VESA DSC 1.2a.
- Supports 340 Mcsc to 600 Mcsc TMDS Character Rate.
- Supports FRL Lane link rates of 3 Gbps, 6 Gbps, 8 Gbps, 10 Gbps, and 12 Gbps.
- Supports Variable Refresh Rate (VRR) and Fast Vactive (FVA).
- Supports Info frames and auxiliary data formats in HDMI specification1.4b/2.0b/2.1
- Supports 2, 8 and 32 channel audio format.
- Supports 8b10b de-coding on TMDS channel.
- Supports Fixed Rate Link transmission with 16b18b de-coding.
- Supports Forward Error Correction (FEC).
- Supports High-bandwidth Digital Content Protection System (HDCP) 1.4/2.2/2.3.
- Supports display data channel (DDC).
- Supports Consumer Electronics Control (CEC1.4/2.0).
- Supports Audio Return Channel (ARC) and Enhanced Audio Return Channel (eARC) Transmitter.
- Supports 10bit, 20bit, 40bit, and 80bit parallel interfaces
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to microprocessor/microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's HDMI SINK IP contains following
- The HDMI Sink interface is available in Source and netlist products.
- The Source product is delivered in plain text verilog. If needed VHDL,SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
