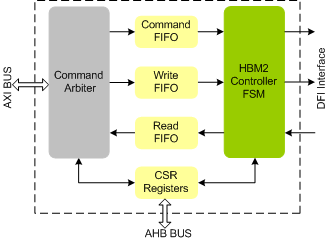

HBM2 is full-featured, easy-to-use, synthesizable design, compatible with HBM2 JESD235 and JESD235A specification and DFI-version 4.0 or 5.0 specification Compliant. Through its HBM2 compatibility, it provides a simple interface to a wide range of low-cost devices. HBM2 IIP is proven in FPGA environment.The host interface of the HBM2 can be simple interface or can be AMBA AHB, AMBA AHB-Lite, AMBA APB, AMBA AXI, AMBA AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or Custom protocol.
HBM2 Controller IIP is supported natively in Verilog and VHDL
- Features
-
- Supports HBM2 protocol standard JESD235 and JESD235A Specification
- Compliant with DFI version 4.0 or 5.0 Specification.
- Supports up to 16 AXI ports with data width upto 512 bits.
- Supports controllable outstanding transactions for AXI write and read channels
- Supports in port arbitration and multi port arbitration.
- Supports user programmable page policy.
- Closed page policy
- Open page policy
- Supports Error Checking and correction (ECC).
- Supports retry on ECC error, with retry limit user controllable.
- Supports high clock speeds in ASIC and FPGA.
- Supports low latency for write and read path.
- Supports reordering of transactions for higher performance.
- Supports all the HBM2 commands as per the specs.
- Supports burst length of 2 and 4.
- Supports all Interface Groups.
- Supports programmable Read/Write latency timings.
- Supports bank grouping.
- Supports DRAM Clock disabling feature.
- Supports Low power control features.
- Supports Data bit enable/disable feature.
- Supports 8, 16, 32 and 64 banks per channel.
- Supports 1:2 and 1:1 MC to PHY frequency ratio.
- Supports up to 8 channels per stack.
- Supports Extended Addressing.
- Supports Extended Write latency and read latency.
- Supports all mode registers programming.
- Supports Data Bus Inversion (DBI) for write and read.
- Supports legacy mode and pseudo channel mode operation (64 DQ width for pseudo channel mode).
- Supports self-refresh modes.
- Supports channel density of 1GB to 128 GB.
- Supports 128 DQ width + optional ECC pin support/channel.
- Supports ECC.
- Supports Error signaling.
- Supports DFI Read/Write Chip Select.
- Supports write data mask and data strobe features.
- Supports for power down features.
- Supports for input clock stop and frequency change.
- Supports for target row refresh mode.
- Supports for temperature compensated refresh reporting.
- Supports for IEEE standard 1500.
- Fully synthesizable
- Static synchronous design.
- Positive edge clocking and no internal tri-states.
- Scan test ready
- Simple interface allows easy connection to microprocessor/microcontroller devices
- Build in self test to test all locations in memory to identify damaged locations
- Benefits
-
- Single Site license option is provided to companies designing in a single site.
- Multi Sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's HBM2 IP contains following
- The HBM2 interface is available in Source and netlist products.
- The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases.
- Lint, CDC, Synthesis, Simulation Scripts with waiver files.
- IP-XACT RDL generated address map.
- Firmware code and Linux driver package.
- Documentation contains User's Guide and Release notes.
