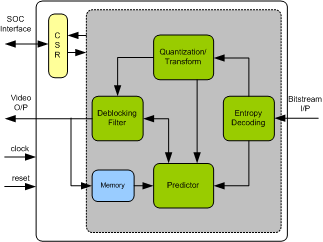

H264 Decoder core is compliant with standard ISO/IEC 14496-10/ITU-T H.264 specification. Through its compatibility, it provides a simple interface to a wide range of low-cost devices.H264 Decoder is proven in FPGA environment. The host interface of the H264 can be simple interface or can be AHB, AHB-Lite, APB, AXI, AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or custom buses.
H264 DECODER IIP is supported natively in Verilog and VHDL
- Features
-
- Supports ISO/IEC 14496-10/ITU-T H.264 specification.
- Supports full H.264/AVC decoder functionality.
- Supports video resolution up to 3840x2160@60fps.
- Supports all type of prediction methods.
- Inter prediction
- Intra prediction
- Supports profile level up to 6.2.
- Supports precision 8 bits and 10 bits.
- Supports all Chroma type 4:4:4, 4:2:2 and 4:2:0.
- Supports both VBR and CBR.
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to microprocessor/microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's H264 Decoder IP contains following
- The H264 Decoder interface is available in Source and netlist products.
- The Source product is delivered in plain text verilog. If needed VHDL,SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
