GDDR5X interface provides full support for the GDDR5X interface, compatible with standard JESD232 and JESD232A specification and DFI-version 4.0 or 5.0 Specification Compliant. Through its GDDR5X compatibility, it provides a simple interface to a wide range of low-cost devices. GDDR5X IIP is proven in FPGA environment. The host interface of the GDDR5X can be simple interface or can be AMBA AHB, AMBA AHB-Lite, AMBA APB, AMBA AXI, AMBA AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or Custom protocol.
GDDR5X Controller IIP is supported natively in Verilog and VHDL

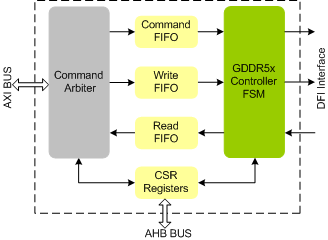

- Features
-
- Supports GDDR5X protocol standard JESD232 and JESD232A.
- Compliant with DFI-version 4.0 or 5.0 Specification.
- Supports all the GDDR5X commands as per the specs.
- Supports up to 16 AXI ports with data width upto 512 bits.
- Supports controllable outstanding transactions for AXI write and read channels
- Supports in port arbitration and multi port arbitration.
- Supports user programmable page policy.
- Closed page policy
- Open page policy
- Supports Error Checking and correction (ECC).
- Supports retry on ECC error, with retry limit user controllable.
- Supports high clock speeds in ASIC and FPGA.
- Supports low latency for write and read path.
- Supports reordering of transactions for higher performance.
- Supports programmable clock frequency of operation.
- Supports for all types of timing and protocol violation detection.
- Supports for following Package Pin out and Addressing,
- Supports the following device modes,
- Supports for All Mode registers programming.
- Supports for Bank group features.
- Supports for Single ended interface for command, address and data.
- Supports for QDR and DDR operating mode.
- Supports for Programmable read latency and write latency.
- Supports for Write data mask function via address bus.
- Supports for Data bus inversion (DBI) & address bus inversion (ABI).
- Supports for Input/output PLL/DLL.
- Supports for Address training.
- Supports for cyclic redundancy check (CRC-8).
- Supports for Low Power modes.
- Supports for Auto & self refresh modes.
- Supports for Auto precharge option for each burst access.
- Supports for On-die termination (ODT) for all high-speed inputs.
- Supports Mirror function with MF pin.
- Supports IEEE 1149.1 compliant boundary scan.
- Supports for input clock stop and frequency change.
- Fully synthesizable
- Static synchronous design.
- Positive edge clocking and no internal tri-states.
- Scan test ready
- Simple interface allows easy connection to microprocessor/microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's GDDR5X IP contains following
- The GDDR5X interface is available in Source and netlist products.
- The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases.
- Lint, CDC, Synthesis, Simulation Scripts with waiver files.
- IP-XACT RDL generated address map.
- Firmware code and Linux driver package.
- Documentation contains User's Guide and Release notes.
