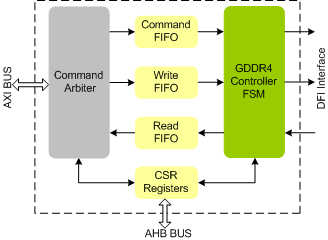

GDDR4 interface provides full support for the GDDR4 interface, compatible with GDDR4Spec_rev_04 specification and DFI-version 4.0 or 5.0 Specification Compliant. Through its GDDR4 compatibility, it provides a simple interface to a wide range of low-cost devices. GDDR4 IIP is proven in FPGA environment. The host interface of the GDDR4 can be simple interface or can be AMBA AHB, AMBA AHB-Lite, AMBA APB, AMBA AXI, AMBA AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or Custom protocol.
GDDR4 Controller IIP is supported natively in Verilog and VHDL
- Features
-
- Supports GDDR4 protocol standard GDDR4Spec_rev_04.
- Compliant with DFI-version 4.0 or 5.0 Specification.
- Supports all the GDDR4 commands as per the specs.
- Supports up to 16 AXI ports with data width upto 512 bits.
- Supports controllable outstanding transactions for AXI write and read channels
- Supports in port arbitration and multi port arbitration.
- Supports user programmable page policy.
- Closed page policy
- Open page policy
- Supports Error Checking and correction (ECC).
- Supports retry on ECC error, with retry limit user controllable.
- Supports high clock speeds in ASIC and FPGA.
- Supports low latency for write and read path.
- Supports reordering of transactions for higher performance.
- Supports for programmable clock frequency of operation.
- Supports for all types of timing and protocol violation detection.
- Supports for All Mode registers programming.
- Supports for Double data rate architecture.
- Supports for Single ended READ strobe (RDQS) per byte.
- Supports for Single ended WRITE strobe (WDQS) per byte.
- Supports for Quad or eight internal banks for concurrent operation.
- Supports for Bidirectional differential data strobe.
- Supports for Programmable Burst Length: 8 only.
- Supports for Data mask (DM) for masking WRITE data.
- Supports for Multiplexed addressing.
- Supports for Auto Precharge option for each burst access.
- Supports for Auto Refresh and Self Refresh Modes.
- Supports for On‐die termination (ODT).
- Supports for Programmable offset for both driver and termination.
- Supports for Parity and Boundary Scan (both optional).
- Supports for input clock stop and frequency change.
- Fully synthesizable
- Static synchronous design.
- Positive edge clocking and no internal tri-states.
- Scan test ready
- Simple interface allows easy connection to microprocessor/microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's GDDR4 IP contains following
- The GDDR4 interface is available in Source and netlist products.
- The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases.
- Lint, CDC, Synthesis, Simulation Scripts with waiver files.
- IP-XACT RDL generated address map.
- Firmware code and Linux driver package.
- Documentation contains User's Guide and Release notes.
