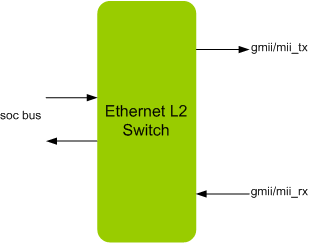

Ethernet Switch core is a full-featured, easy-to-use, synthesizable design that supports various Ethernet IEEE standards. Through its Ethernet compatibility, it provides a simple interface to a wide range of low-cost devices. Ethernet Switch IIP is proven in FPGA environment. It can also supports a variety of host bus interfaces for easy adoption into any design architecture - AHB,AHB-Lite,APB,AXI,AXI-Lite,Tilelink,OCP,VCI,Avalon,PLB,Wishbone or custom buses
ETHERNET Switch IIP is supported natively in Verilog and VHDL
- Features
-
- Compliant with IEEE Standard 802.3-2018 Specification
- Supports Full-duplex and Half-duplex 10M/100M/1G Ethernet interfaces
- Supports 10G/25G/50G/40G and 100G Ethernet interfaces
- Supports MII/GMII/RGMII/QSGMII/USXGMII Physical Layer device (PHY) interfaces
- Supports different data rate for each port
- Supports Dynamic MAC Table with automatic MAC addresses learning and aging
- Supports Static MAC Table
- Supports Jumbo Frame Management
- Supports Ethertype Based Switching
- Supports Ingress Port Mirroring
- Supports Broadcast/Multicast Storm protection
- Supports Per-Port Rate limiting (Broadcast, Multicast and Unicast traffic)
- Supports timing synchronization as per IEEE Standard 1588-2008(PTP) and IEEE Standard 802.1AS(GPTP)
- Supports Multicast Frame Filtering
- Supports Switching Portmask
- Supports Port-based VLAN
- Supports QoS - Priorities(PCP-802.1p,DSCP TOS, Ethertype)
- Supports DSA (Distributed Switching Architecture) tagging
- Supports MDIO, AXI4-Lite or CoE(Configuration-over-Ethernet) SOC interfaces
- Supports RSTP (Software stack required)
- Supports MRP (Software stack not required)
- Ring Manager (MRM)
- Ring Client (MRC)
- Supports DLR (Software stack not required)
- Beacon Based Node
- Supervisor Node
- Supports Preemption as per IEEE Standard 802.1Qbu and IEEE Standard 802.3br Interspersing Express Traffic
- Supports Traffic Scheduling - IEEE Standard 802.1Qbv and IEEE Standard 802.1Qav
- Supports class based flow control and class based FIFO to store each class, total 8 class - IEEE Standard 802.1Q
- In house UNH compliance tested
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to Microprocessor/Microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's Ethernet Switch IP contains following
- The Ethernet interface is available in Source and netlist products.
- The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
